TSL8029N Datasheet - Tagore

TSL8029N, 100Watt Receiver Front End

The TSL8029N is a single-channel, integrated RF, front-end, multichip module designed for different applications. The device operates from 2GHz to 5GHz.The TSL8029N is configured with a cascading, two-stage, GaAs LNA and a GaN based SPDT switch. In high gain mode, the cascaded two-stage LNA and swit.

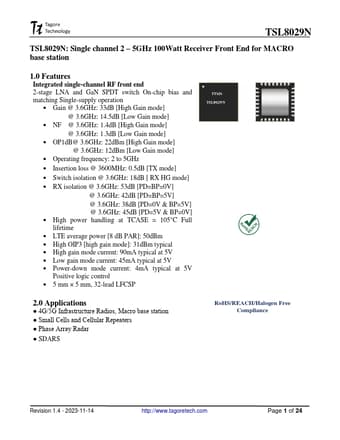

Datasheet Preview Page 1

TSL8029N-Tagore.pdf

Preview of TSL8029N PDF
TSL8029N Datasheet Preview Page 2 TSL8029N Datasheet Preview Page 3

Datasheet Details

Part number:

TSL8029N

Manufacturer:

Tagore

File Size:

1.88 MB

Description:

100Watt Receiver Front End

TSL8029N Features

* Integrated single-channel RF front end 2-stage LNA and GaN SPDT switch On-chip bias and matching Single-supply operation

* Gain @ 3.6GHz: 33dB [High Gain mode] @ 3.6GHz: 14.5dB [Low Gain mode]

* NF @ 3.6GHz: 1.4dB [High Gain mode] @ 3.6GHz: 1.3dB [Low Gain mode]

* OP1dB@ 3.6G
