UTF1404 Datasheet - UTC

UTF1404 160A 40V N-CHANNEL POWER MOSFET

The UTC UTF1404 is an N-channel enhancement MOSFET, it uses UTC’s advanced technology to provide the customers with perfect RDS(ON) and high switching speed. The UTC UTF1404 is suitable for all commercial-industrial applications at power dissipation levels to approximately 50 watts, etc. * F.

UTF1404 Features

* RDS(ON)=3.5mΩ @ VGS=10V,ID=95A

* High Switching Speed

* SYMBOL Power MOSFET

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free UTF1404L-TA3-T UTF1404G-TA3-T Note: Pin Assignment: G: Gate D: Drain Package TO-220 S: Source Pin Assignment 1 2 3 G D S

UTF1404 Datasheet (182.70 KB)

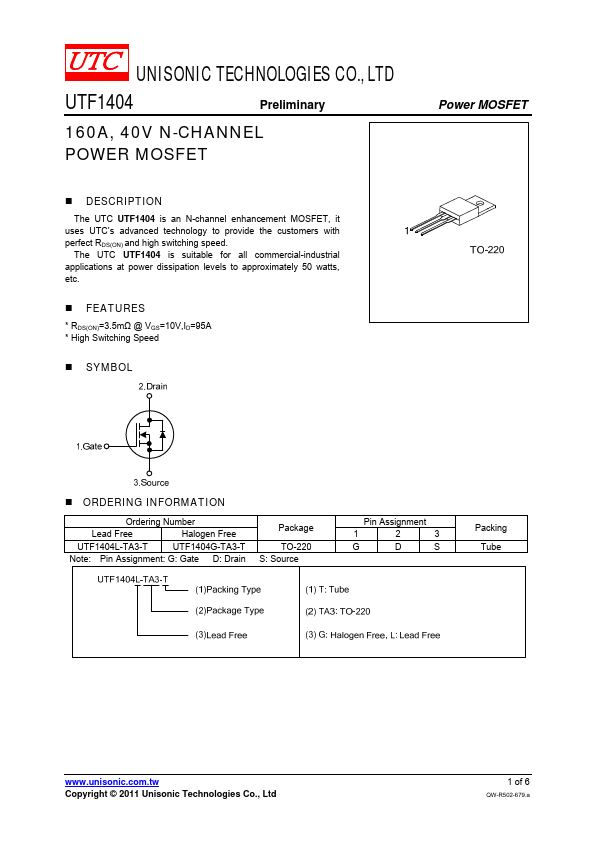

Preview of UTF1404 PDF

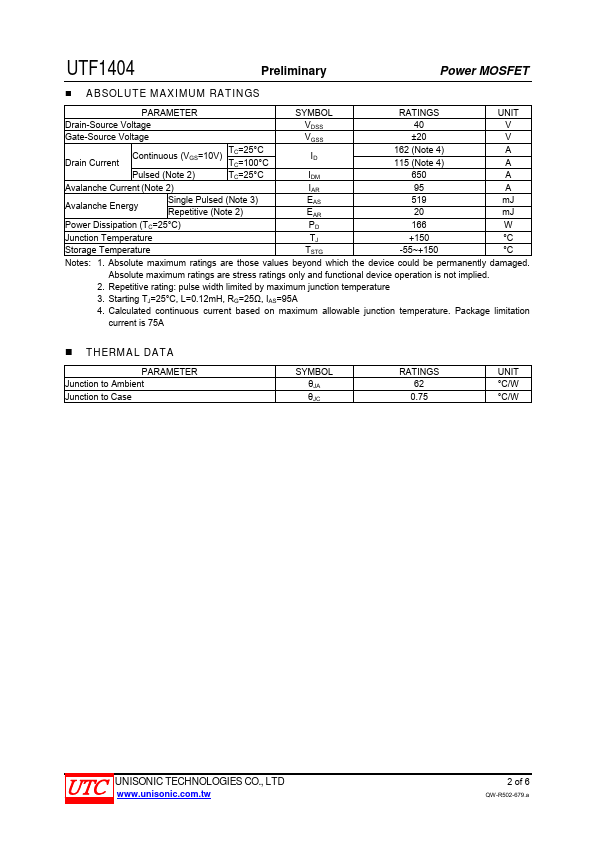

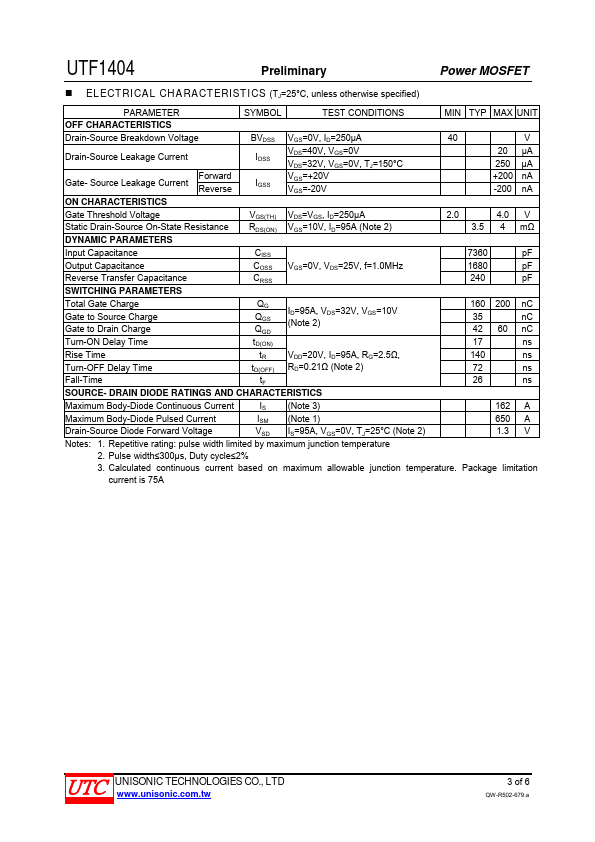

UTF1404 Datasheet Preview Page 2 UTF1404 Datasheet Preview Page 3

Datasheet Details

Part number:

UTF1404

Manufacturer:

UTC

File Size:

182.70 KB

Description:

160a 40v n-channel power mosfet.
