CHR3693-FAB, Integrated Down converter

The CHR3693-FAB is a down-convertor in leadless surface mount hermetic metal ceramic 6x6mm² package. It integrates a balanced cold FET mixer, a time two multiplier, and a RF LNA. The RF range is 21-26.5GHz and the IF range is DC3.5GHz. It is designed for a wide range of applications, from military t.

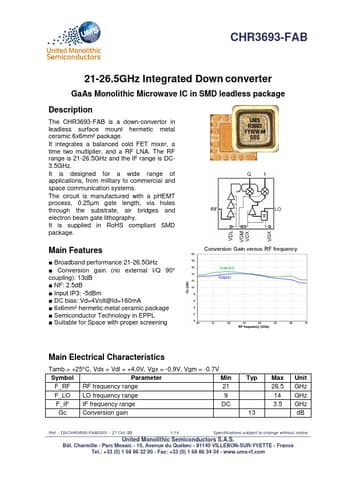

datasheet Preview Page 1 from Datasheet4u.com

CHR3693-FAB-UnitedMonolithicSemiconductors.pdf

CHR3693-FAB Datasheet Preview — Preview of CHR3693-FAB PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number:

CHR3693-FAB

Manufacturer:

United Monolithic Semiconductors

File Size:

1.73 MB

Description:

Integrated Down converter

CHR3693-FAB Features

* Broadband performance 21-26.5GHz

* Conversion gain (no external I/Q 90° coupling): 13dB

* NF: 2.5dB

* Input IP3: -5dBm

* DC bias: Vd=4Volt@Id=160mA

* 6x6mm² hermetic metal ceramic package

* Semiconductor Technology in EPPL

* Suitable for Space with proper screening
