Datasheet4U.com

BAT54W-V Datasheet

Manufacturer: Vishay

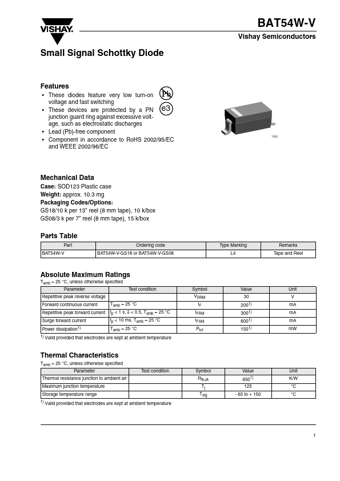

BAT54W-V datasheet preview

Datasheet Details

Part number	BAT54W-V
Datasheet	BAT54W-V-Vishay.pdf
File Size	93.30 KB
Manufacturer	Vishay
Description	Small Signal Schottky Diode

BAT54W-V Overview

Small Signal Schottky Diode BAT54W-V Vishay Semiconductors.

BAT54W-V Key Features

These diodes feature very low turn-on voltage and fast switching
These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges
Lead (Pb)-free ponent
ponent in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
