WSE3099 Datasheet - Winsok

WSE3099 P-Ch MOSFET

Product Summery The WSE3099 is the highest performance trench P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSE3099 meet the RoHS and Green Product requirement with full function reliability .

WSE3099 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available Absolute Maximum Ratings BVDSS -30V RDSON 53mΩ ID -5.0A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networking DC-DC

WSE3099 Datasheet (1.72 MB)

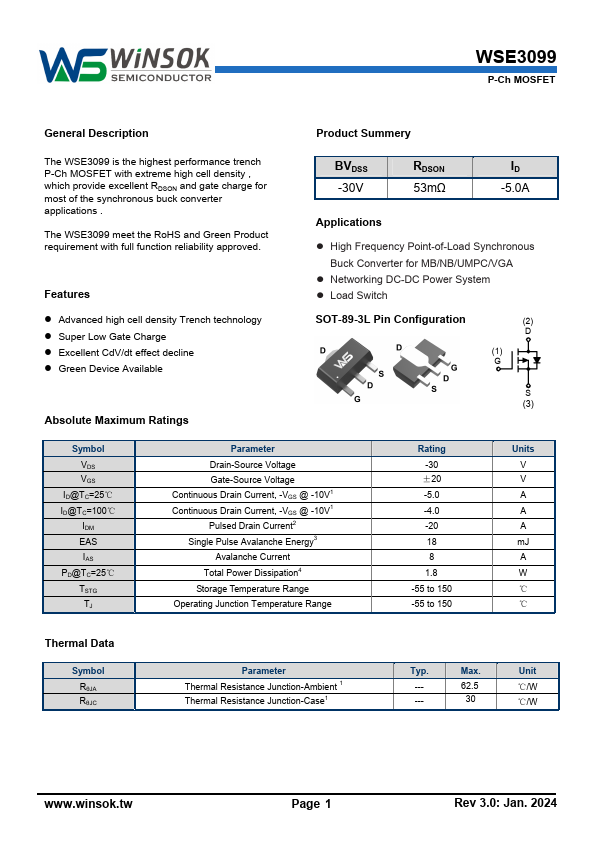

Preview of WSE3099 PDF

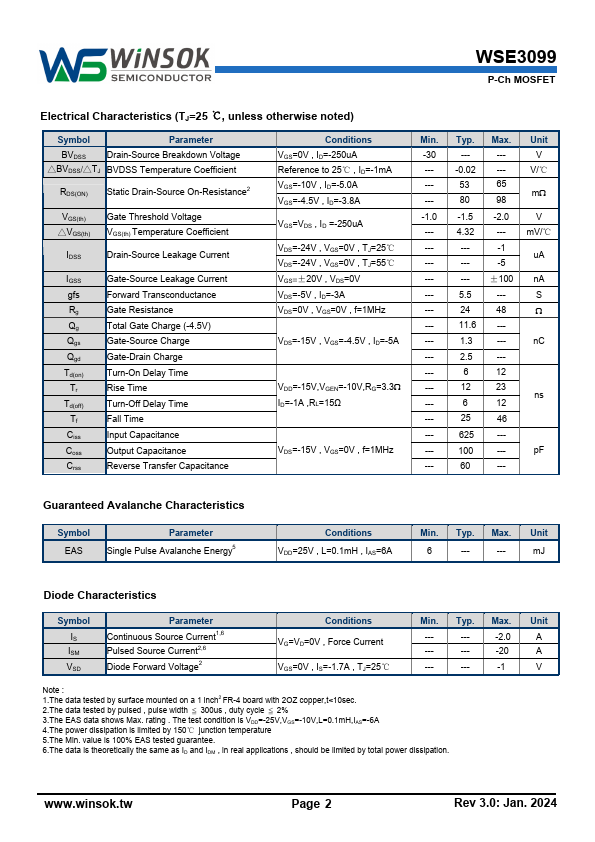

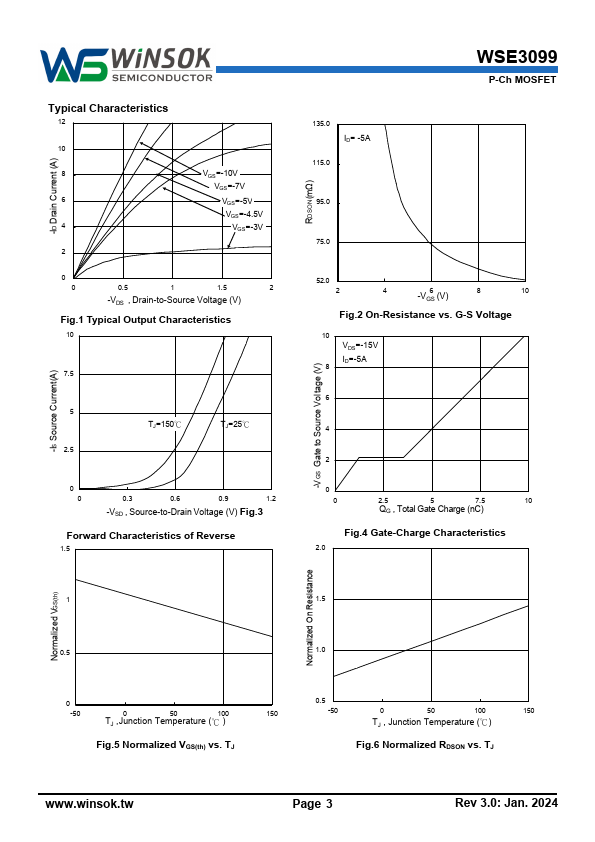

WSE3099 Datasheet Preview Page 2 WSE3099 Datasheet Preview Page 3

Datasheet Details

Part number:

WSE3099

Manufacturer:

Winsok

File Size:

1.72 MB

Description:

P-ch mosfet.
