WSP4407 Datasheet - Winsok

WSP4407 P-Ch MOSFET

The WSP4407 is the highest performance trench P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSP4407 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabil.

WSP4407 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS -30V RDSON 9.6mΩ ID -13A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Net

WSP4407 Datasheet (2.02 MB)

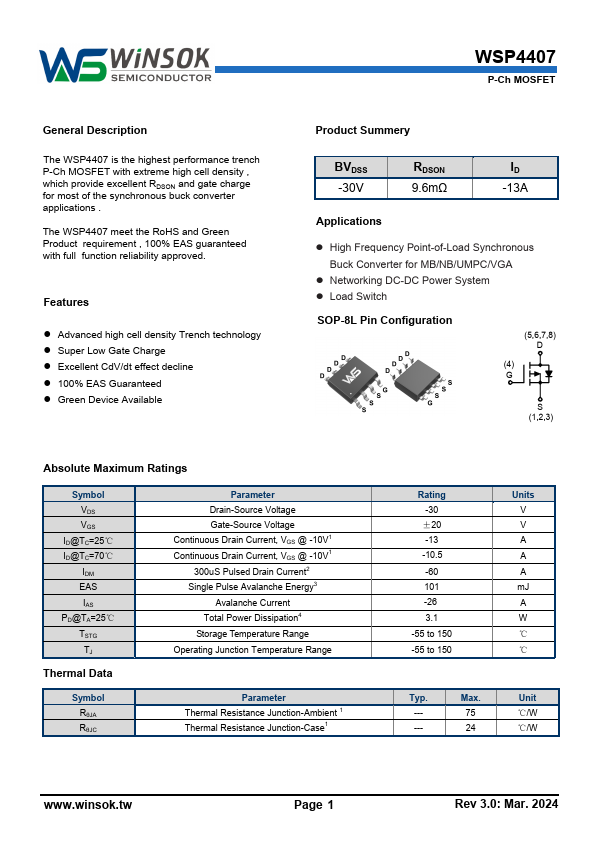

Preview of WSP4407 PDF

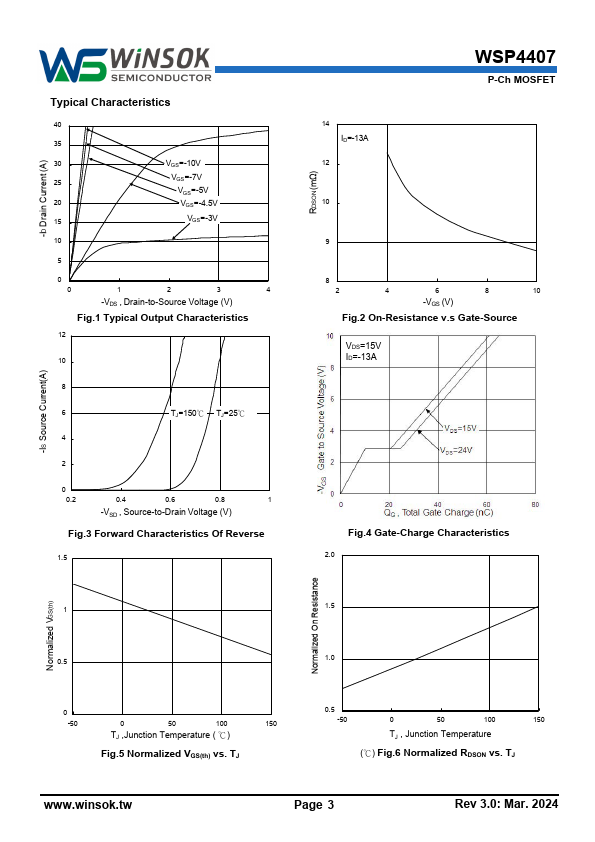

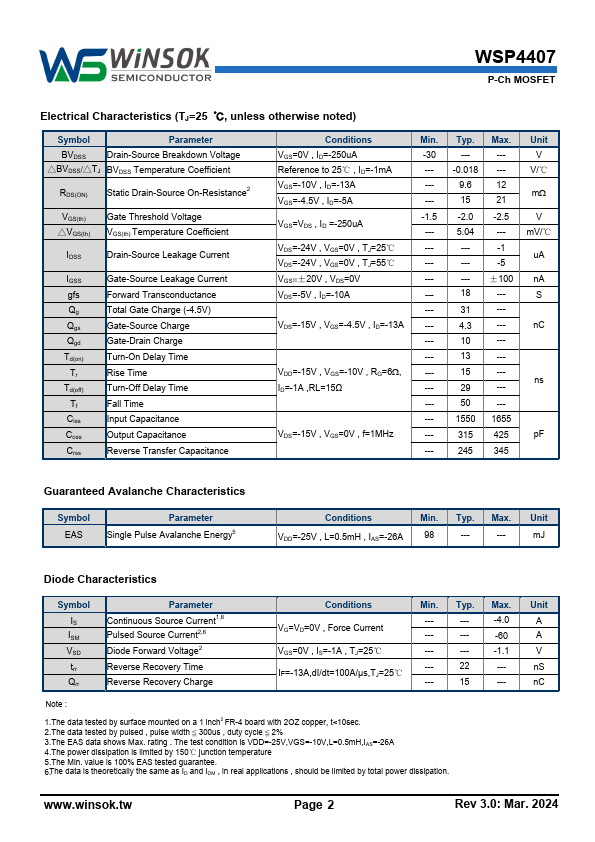

WSP4407 Datasheet Preview Page 2 WSP4407 Datasheet Preview Page 3

Datasheet Details

Part number:

WSP4407

Manufacturer:

Winsok

File Size:

2.02 MB

Description:

P-ch mosfet.
