WSP4409 Datasheet - Winsok

WSP4409 P-Ch MOSFET

The WSP4409 is the highest performance trench P-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSP4409 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabil.

WSP4409 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available WSP4409 P-Ch MOSFET Product Summery BVDSS -30V RDSON 5.0mΩ ID -17.6A Applications z Power Management in Notebook Computer, Portable Equipment

WSP4409 Datasheet (2.05 MB)

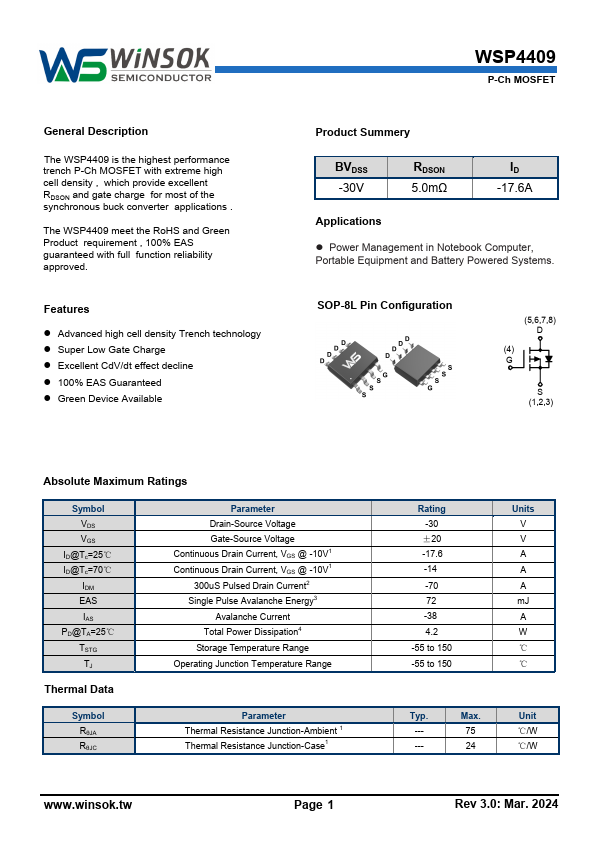

Preview of WSP4409 PDF

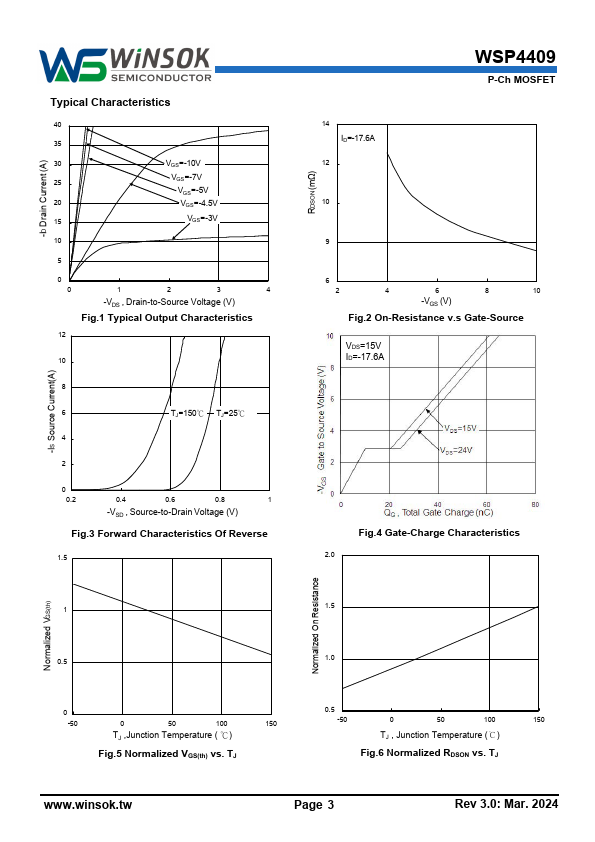

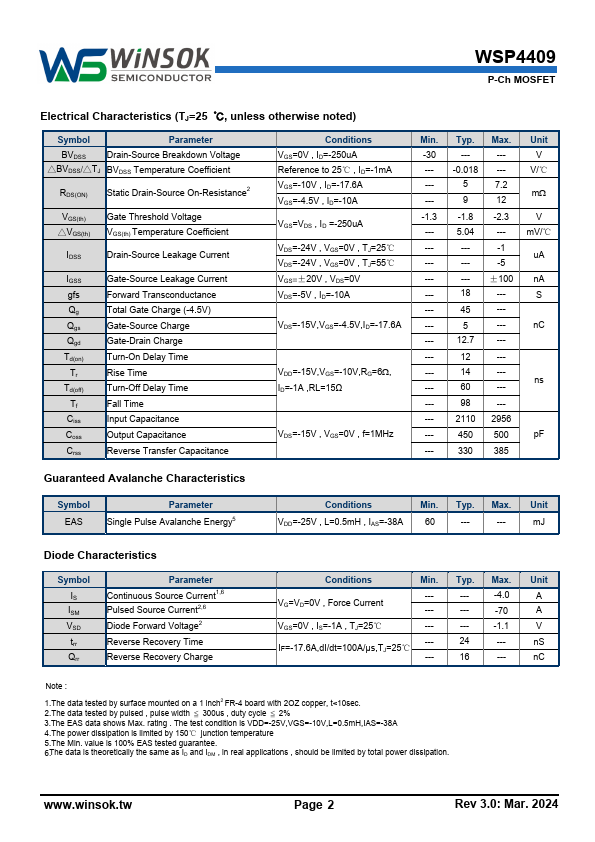

WSP4409 Datasheet Preview Page 2 WSP4409 Datasheet Preview Page 3

Datasheet Details

Part number:

WSP4409

Manufacturer:

Winsok

File Size:

2.05 MB

Description:

P-ch mosfet.
