MT9043 Datasheet - Zarlink Semiconductor

MT9043, T1/E1 System Synchronizer

The MT9043 T1/E1 System Synchronizer contains a digital phase-locked loop (DPLL), which provides timing and synchronization signals for multitrunk T1 and E1 primary rate transmission links. The MT9043 generates ST-BUS clock and framing signals that are phase locked to either a 19.44 MHz, 2.048MHz, 1.

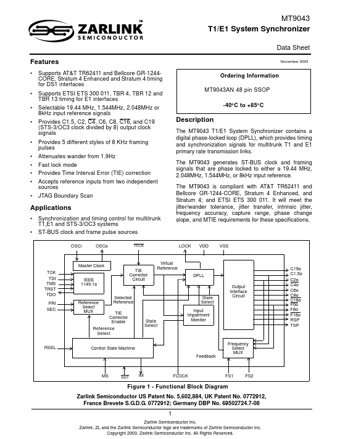

Datasheet Preview Page 1

MT9043_ZarlinkSemiconductor.pdf

Preview of MT9043 PDF
MT9043 Datasheet Preview Page 2 MT9043 Datasheet Preview Page 3

Datasheet Details

Part number:

MT9043

Manufacturer:

Zarlink Semiconductor

File Size:

453.05 KB

Description:

T1/E1 System Synchronizer

MT9043 Features

* Supports AT&T TR62411 and Bellcore GR-1244CORE, Stratum 4 Enhanced and Stratum 4 timing for DS1 interfaces Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing for E1 interfaces Selectable 19.44 MHz, 1.544MHz, 2.048MHz or 8kHz input reference signals Provides C1.5, C2, C4, C6, C8, C1
