LMG3522R030 Datasheet - Texas Instruments

LMG3522R030, GaN FET

The LMG352xR030 GaN FET with integrated driver and protection is targeted at switch-mode power converters and enables designers to achieve new levels of power density and efficiency. The LMG352xR030 integrates a silicon driver that enables switching speed up to 150V/ns. TI’s integrated precision g.

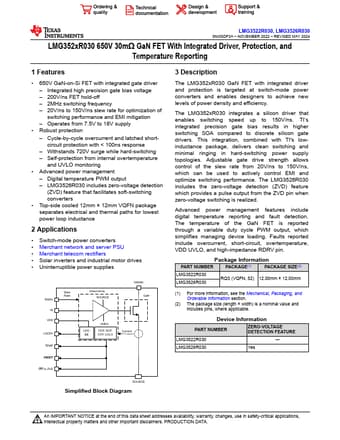

Datasheet Preview Page 1

LMG3522R030-etcTI.pdf

Preview of LMG3522R030 PDF
LMG3522R030 Datasheet Preview Page 2 LMG3522R030 Datasheet Preview Page 3

Datasheet Details

Part number:

LMG3522R030

Manufacturer:

Texas Instruments ↗

File Size:

3.11 MB

Description:

GaN FET

LMG3522R030 Features

* 650V GaN-on-Si FET with integrated gate driver

* Integrated high precision gate bias voltage

* 200V/ns FET hold-off

* 2MHz switching frequency

* 20V/ns to 150V/ns slew rate for optimization of switching performance and EMI mitigation

* Operates from
