SN65LVDM050D, SN65LVDM179 Datasheet - Texas Instruments

SN65LVDM050D, SN65LVDM179, HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

The SN65LVDM179, SN65LVDM180, SN65LVDM050, and SN65LVDM051 are differential line drivers and receivers that use low-voltage differential signaling (LVDS) to achieve high signaling rates. These circuits are similar to TIA/EIA-644 standard compliant devices (SN65LVDS) counterparts, except tha.

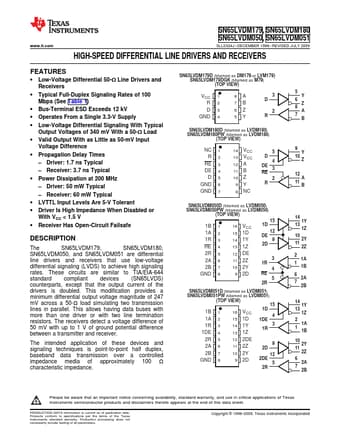

Datasheet Preview Page 1

SN65LVDM179-etcTI.pdf

This datasheet PDF includes multiple part numbers: SN65LVDM050D, SN65LVDM179. Please refer to the document for exact specifications by model.
SN65LVDM050D Datasheet Preview Page 2 SN65LVDM050D Datasheet Preview Page 3

Datasheet Details

Part number:

SN65LVDM050D, SN65LVDM179

Manufacturer:

Texas Instruments ↗

File Size:

1.79 MB

Description:

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

Note:

This datasheet PDF includes multiple part numbers: SN65LVDM050D, SN65LVDM179.
Please refer to the document for exact specifications by model.

SN65LVDM050D Features

* 1

* Low-Voltage Differential 50-Ω Line Drivers and Receivers

* Typical Full-Duplex Signaling Rates of 100 Mbps (See Table 1)

* Bus-Terminal ESD Exceeds 12 kV

* Operates From a Single 3.3-V Supply

* Low-Voltage Differential Signaling With Typical Output Voltage
