SN65LVDM051-Q1 High-Speed Differential Line Drivers And Receivers

The SN65LVDM050, and SN65LVDM051 are differential line drivers and receivers that use low-voltage differential signaling (LVDS) to achieve signaling rates as high as 500 Mbps (per TIA/EIA-644 definition). These circuits are similar to TIA/EIA-644 standard compliant devices (SN65LVDS) counterparts, e.

SN65LVDM050ĆQ1, SN65LVDM051ĆQ1 HIGHĆSPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS D Qualified for Automotive Applications D ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0) D Low-Voltage Differential 50-Ω Line Drivers and Receivers D Signaling Rates up to 500 Mbps D Bus-Terminal ESD Exceeds 12 kV D Operates From a Single 3.3 V Supply D Low-Voltage Differential Signaling With Typical Output Voltages of 340 mV With a 50-Ω Load D Val.

SN65LVDM051-Q1 Datasheet (449.37 KB)

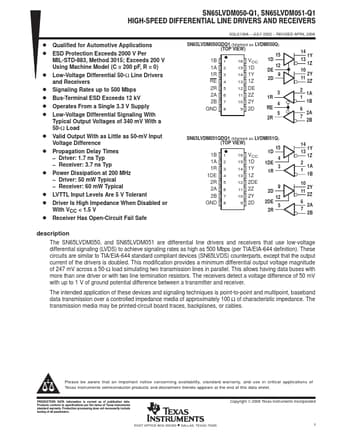

SN65LVDM051-Q1 Datasheet Preview — Preview of SN65LVDM051-Q1 PDF

Datasheet Details

Part number:

SN65LVDM051-Q1

Manufacturer:

Texas Instruments ↗

File Size:

449.37 KB

Description:

High-speed differential line drivers and receivers.
