SN65LVDM050D

The SN65LVDM050D is HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS designed by Texas Instruments.

Product Overview

Texas Instruments

Datasheet Details

Part number	SN65LVDM050D, SN65LVDM179
Manufacturer	Texas Instruments
File Size	1.79 MB
Description	HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS
Datasheet	SN65LVDM179-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: SN65LVDM050D, SN65LVDM179. Please refer to the document for exact specifications by model.

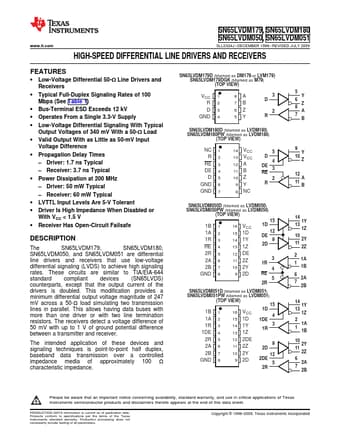

Additional preview pages of the SN65LVDM050D datasheet.

Product details

Description

The SN65LVDM179, SN65LVDM180, SN65LVDM050, and SN65LVDM051 are differential line drivers and receivers that use low-voltage differential signaling (LVDS) to achieve high signaling rates.These circuits are similar to TIA/EIA-644 standard compliant devices (SN65LVDS) counterparts, except that the output current of the drivers is doubled.This modification provides a minimum differential output voltage magnitude of 247 mV across a 50-Ω load simulating two transmission lines in paralle

Features

1.
Low-Voltage Differential 50-Ω Line Drivers and Receivers.
Typical Full-Duplex Signaling Rates of 100 Mbps (See Table 1).
Bus-Terminal ESD Exceeds 12 kV.
Operates From a Single 3.3-V Supply.
Low-Voltage Differential Signaling With Typical Output Voltages of 340 mV With a 50-Ω Load.
Valid Output With as Little as 50-mV Input Voltage Difference.
Propagation Delay Times.
Driver: 1.7 ns Typical.
Receiver: 3.7 ns Typic.
