SN65LVDM051, SN65LVDM179 Datasheet - Texas Instruments

SN65LVDM051, SN65LVDM179, HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SN65LVDM179, SN65LVDM180 SN65LVDM050, SN65LVDM051 www.ti.com SLLS324J * DECEMBER 1998 * REVISED JULY 2009 HIGH-SPEED DIFFERENTIAL LIN.
The SN65LVDM179, SN65LVDM180, SN65LVDM050, and SN65LVDM051 are differential line drivers and receivers that use low-voltage differential signali.

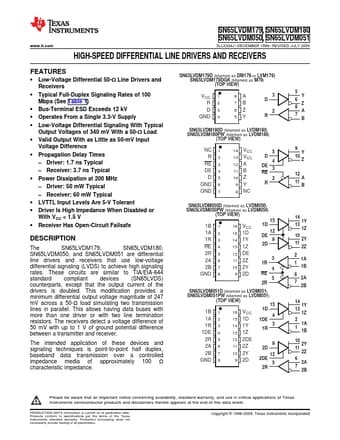

datasheet Preview Page 1 from Datasheet4u.com

SN65LVDM179-etcTI.pdf

SN65LVDM051 Datasheet Preview — This datasheet PDF includes multiple part numbers: SN65LVDM051, SN65LVDM179. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SN65LVDM051, SN65LVDM179

Manufacturer:

Texas Instruments ↗

File Size:

1.79 MB

Description:

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

Note:

This datasheet PDF includes multiple part numbers: SN65LVDM051, SN65LVDM179.
Please refer to the document for exact specifications by model.

Features

* 1
* Low-Voltage Differential 50-Ω Line Drivers and Receivers
* Typical Full-Duplex Signaling Rates of 100 Mbps (See Table 1)
* Bus-Terminal ESD Exceeds 12 kV
* Operates From a Single 3.3-V Supply
* Low-Voltage Differential Signaling With Typical Output Voltage

Applications

* of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not neces
