SN65LVDM051PW HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

The SN65LVDM179, SN65LVDM180, SN65LVDM050, and SN65LVDM051 are differential line drivers and receivers that use low-voltage differential signaling (LVDS) to achieve high signaling rates. These circuits are similar to TIA/EIA-644 standard compliant devices (SN65LVDS) counterparts, except tha.

SN65LVDM051PW Features

* 1

* Low-Voltage Differential 50-Ω Line Drivers and Receivers

* Typical Full-Duplex Signaling Rates of 100 Mbps (See Table 1)

* Bus-Terminal ESD Exceeds 12 kV

* Operates From a Single 3.3-V Supply

* Low-Voltage Differential Signaling With Typical Output Voltage

SN65LVDM051PW Datasheet (1.79 MB)

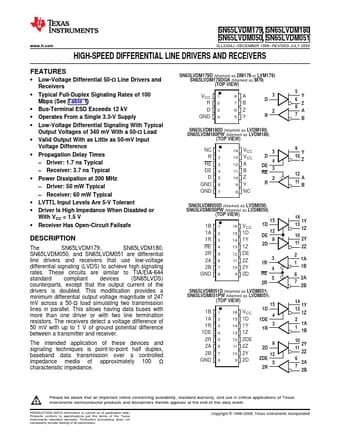

SN65LVDM051PW Datasheet Preview — Preview of SN65LVDM051PW PDF

Datasheet Details

Part number:

SN65LVDM051PW

Manufacturer:

Texas Instruments ↗

File Size:

1.79 MB

Description:

High-speed differential line drivers and receivers.
