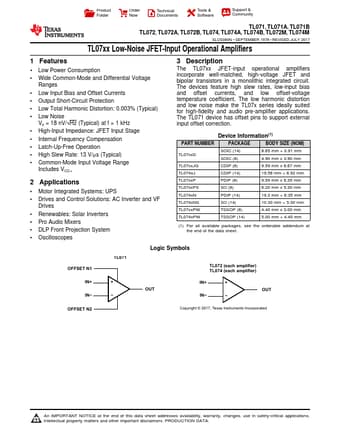

TL072I Datasheet | Texas Instruments

Features - 1 Low Power Consumption - Wide mon-Mode and Differential Voltage Ranges - Low Input Bias and Offset Currents - Output Short-Circuit Protection - Low Total Harmonic Distortion: 0.003% (Typical) - Low Noise Vn = 18 n V/√Hz (Typical) at f = 1 k Hz - High-Input Impedance: JFET Input Stage - Internal Frequency pensation - Latch-Up-Free Operation - High Slew Rate: 13 V/μs (Typical) - mon-Mode Input Voltage Range Includes VCC+ 2 Applications - Motor Integrated Systems: UPS - Drives and Control Solutions: AC Inverter and VF Drives - Renewables: Solar Inverters - Pro Audio Mixers - DLP Front Projection System - Oscilloscopes 3 Description The TL07xx JFET-input operational amplifiers incorporate well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio pre-amplifier applications. The TL071 device has offset pins to support external input offset correction. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) TL07xx D SOIC (14) SOIC (8) 8.65 mm × 3.91 mm 4.90 mm x 3.90 mm TL07xx JG CDIP (8) 9.59 mm x 6.67 mm TL074x J CDIP (14) 19.56 mm × 6.92 mm TL07xx P PDIP...
