74AUP1G125-Q100 - Low-power buffer/line driver

Description

The 74AUP1G125-Q100 is a single buffer/line driver with 3-state output.

Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.

This device ensures very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V.

Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 1).
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
  • Wide supply voltage range from 0.8 V to 3.6 V.
  • High noise immunity.
  • Complies with JEDEC standards:.
  • JESD8-12 (0.8 V to 1.3 V).
  • JESD8-11 (0.9 V to 1.65 V).
  • JESD8-7 (1.2 V to 1.95 V).
  • JESD8-5 (1.8 V to 2.7 V).
  • JESD8-B (2.7 V to 3.6 V).
  • ESD protection:.
  • MIL-STD-.

📥 Download Datasheet

📁 Similar Datasheet

  • 74AUP1G125 - Low-power buffer/line driver (NXP Semiconductors)
  • 74AUP1G125 - SINGLE BUFFER GATE (Diodes)
  • 74AUP1G126 - Low-Power buffer/line driver (NXP)
  • 74AUP1G126 - SINGLE BUFFER GATE (Diodes)
  • 74AUP1G11 - Low-power 3-input AND gate (NXP)
  • 74AUP1G14 - Low-power Schmitt-trigger inverter (NXP)
  • 74AUP1G14 - SINGLE SCHMITT-TRIGGER INVERTER (Diodes)
  • 74AUP1G17 - Low-power Schmitt-trigger buffer (NXP)
  • 74AUP1G17 - SINGLE SCHMITT-TRIGGER BUFFER (Diodes)
  • 74AUP1G175 - Low Power D-Type Flip-Flop (NXP)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

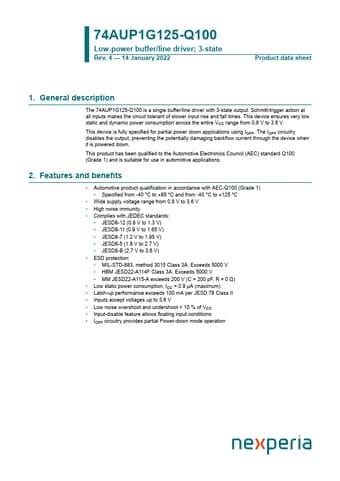

74AUP1G125-Q100 Low-power buffer/line driver; 3-state Rev. 4 — 14 January 2022 Product data sheet 1. General description The 74AUP1G125-Q100 is a single buffer/line driver with 3-state output. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device ensures very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. 2.
