74AUP2GU04-Q100 - Low-power dual unbuffered inverter

Description

The 74AUP2GU04-Q100 is a dual unbuffered inverter.

Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.

This device ensures very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V.

Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 1).
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
  • Wide supply voltage range from 0.8 V to 3.6 V.
  • CMOS low power dissipation.
  • High noise immunity.
  • Overvoltage tolerant inputs to 3.6 V.
  • Low noise overshoot and undershoot < 10 % of VCC.
  • Latch-up performance exceeds 100 mA per JESD 78 Class II.
  • Low static power consumption; ICC = 0.9 μA (.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

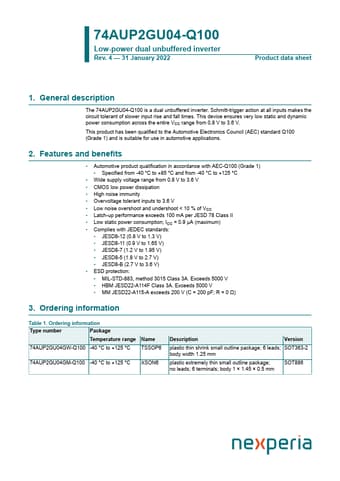

74AUP2GU04-Q100 Low-power dual unbuffered inverter Rev. 4 — 31 January 2022 Product data sheet 1. General description The 74AUP2GU04-Q100 is a dual unbuffered inverter. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device ensures very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. 2. Features and benefits • Automotive product qualification in accordance with AEC-Q100 (Grade 1) • Specified from -40 °C to +85 °C and from -40 °C to +125 °C • Wide supply voltage range from 0.8 V to 3.
