74HC540-Q100 - Octal buffer/line driver

Datasheet Summary

Description

The 74HC540-Q100; 74HCT540-Q100 is an 8-bit inverting buffer/line driver with 3-state outputs.

Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 1).
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
  • Wide supply voltage range from 2.0 to 6.0 V.
  • CMOS low power dissipation.
  • High noise immunity.
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
  • Inverting outputs.
  • Wide supply voltage range from 2.0 to 6.0 V.
  • Input levels:.
  • For 74HC540-Q100: CMOS level.

📥 Download Datasheet

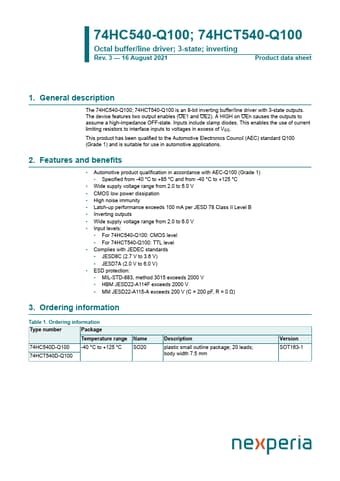

Datasheet preview – 74HC540-Q100

Datasheet Details

Part number 74HC540-Q100
Manufacturer nexperia
File Size 231.97 KB
Description Octal buffer/line driver
Datasheet download datasheet 74HC540-Q100 Datasheet
Additional preview pages of the 74HC540-Q100 datasheet.

📁 Similar Datasheet

  • 74HC540 - Octal Buffers and Line Drivers (Texas Instruments)
  • 74HC540 - Octal Bus Buffer Inverting (ST Microelectronics)
  • 74HC540D - Octal Bus Buffer (Toshiba)
  • 74HC541 - OCTAL BUS BUFFER (STMicroelectronics)
  • 74HC541 - Octal Buffers/Line Drivers (Hitachi)
  • 74HC541 - Inverting Octal 3-STATE Buffer (Fairchild)
  • 74HC541 - Octal buffer/line driver (NXP)
  • 74HC541A - Octal 3-State Non-Inverting Buffer/Line Driver/Line Receiver (ON Semiconductor)
  • 74HC541A - Octal 3-State Non-Inverting Buffer/Line Driver/Line Receiver (Motorola)
  • 74HC541D - Octal Bus Buffer (Toshiba)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text
74HC540-Q100; 74HCT540-Q100 Octal buffer/line driver; 3-state; inverting Rev. 3 — 16 August 2021 Product data sheet 1. General description The 74HC540-Q100; 74HCT540-Q100 is an 8-bit inverting buffer/line driver with 3-state outputs. The device features two output enables (OE1 and OE2). A HIGH on OEn causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. 2.
