74HC541 Datasheet - STMicroelectronics

74HC541 OCTAL BUS BUFFER

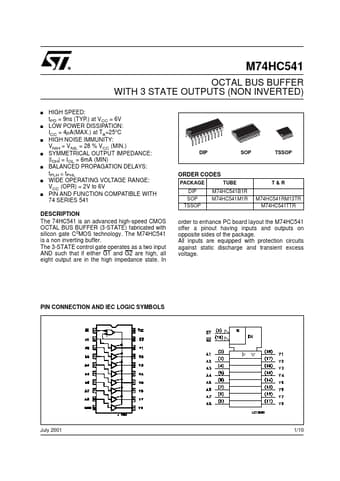

The 74HC541 is an advanced high-speed CMOS OCTAL BUS BUFFER (3-STATE) fabricated with silicon gate C2MOS technology. The M74HC541 is a non inverting buffer. The 3-STATE control gate operates as a two input AND such that if either G1 and G2 are high, all eight output are in the high impedance state. .

74HC541-STMicroelectronics.pdf

Preview of 74HC541 PDF
74HC541 Datasheet Preview Page 2 74HC541 Datasheet Preview Page 3

Datasheet Details

Part number:

74HC541

Manufacturer:

STMicroelectronics ↗

File Size:

246.66 KB

Description:

Octal bus buffer.
