Part number:
74HC595Y
Manufacturer:
File Size:
288.52 KB
Description:
8-bit shift register.
74HC595Y Datasheet (288.52 KB)
| Image | Manufacturer | B2B MPN | Description | Distributor | Stock | Quantity | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
 |
STMicroelectronics | M74HC595YTTR | IC SHIFT REG LATCH 8BIT 16TSSOP | DigiKey | 3876 | 500 units |
$0.51
|
🛒 Buy Now |
74HC595Y Datasheet (288.52 KB)
74HC595Y
288.52 KB
8-bit shift register.

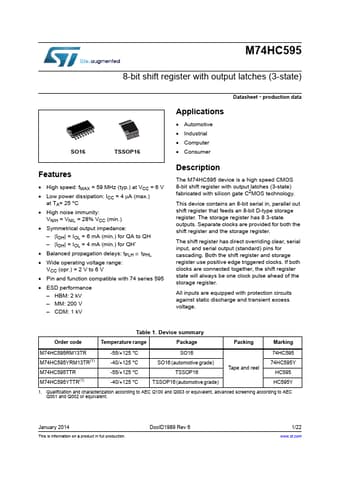

* High speed: fMAX = 59 MHz (typ.) at VCC = 6 V
* Low power dissipation: ICC = 4 μA (max.) at TA= 25 °C
* High noise immunity: VNIH = VNIL = 28% VCC (min.)
* Symmetrical output impedance:
* |IOH| = IOL = 6 mA (min.) for QA to QH
* |IOH| = IOL = 4 mA (m
