74HC595 - 8-Bit Serial-In/Serial-Out or Parallel-Out Shift Register

SG Micro

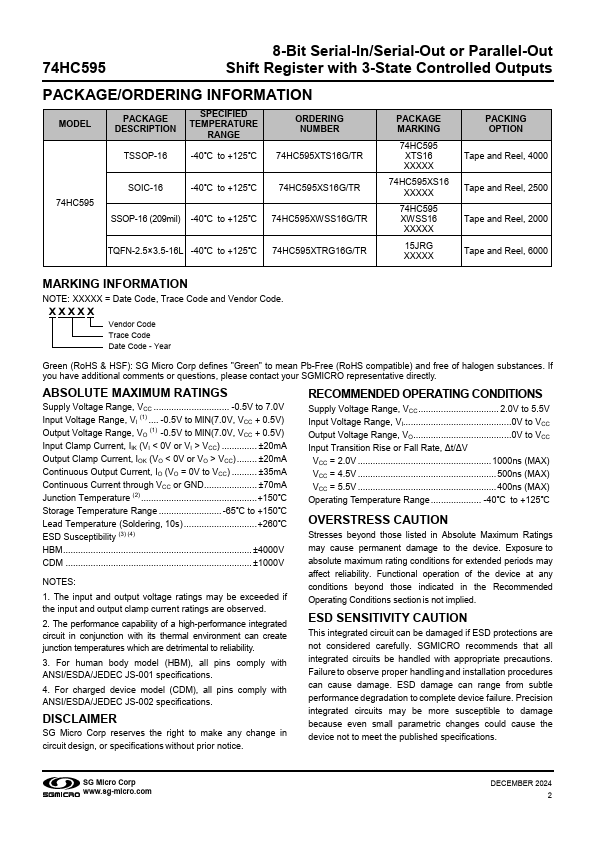

74HC595 Description

74HC595 8-Bit Serial-In/Serial-Out or Parallel-Out Shift Register with 3-State Controlled Outputs GENERAL .
The 74HC595 is an 8-bit serial-in/serial-out or parallel-out shift register with 3-state outputs designed for 2.

74HC595 Features

* parallel 3-state outputs. The shift register provides a clear input (S
* R
* C
* L
* R
* ) with direct overriding function, a serial input (SER) and a serial output (QH') to implement cascading. When output enable input (O
* E
* ) is held low, th

74HC595 Applications

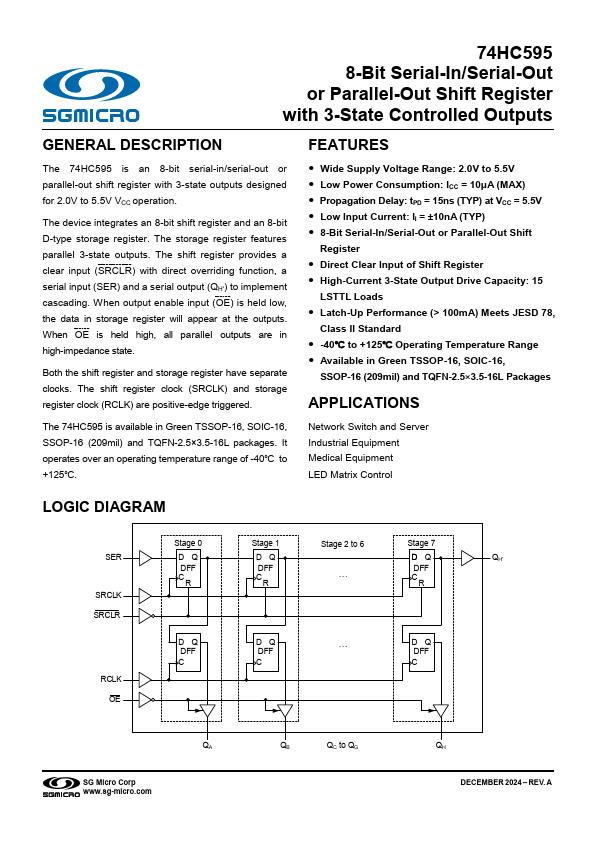

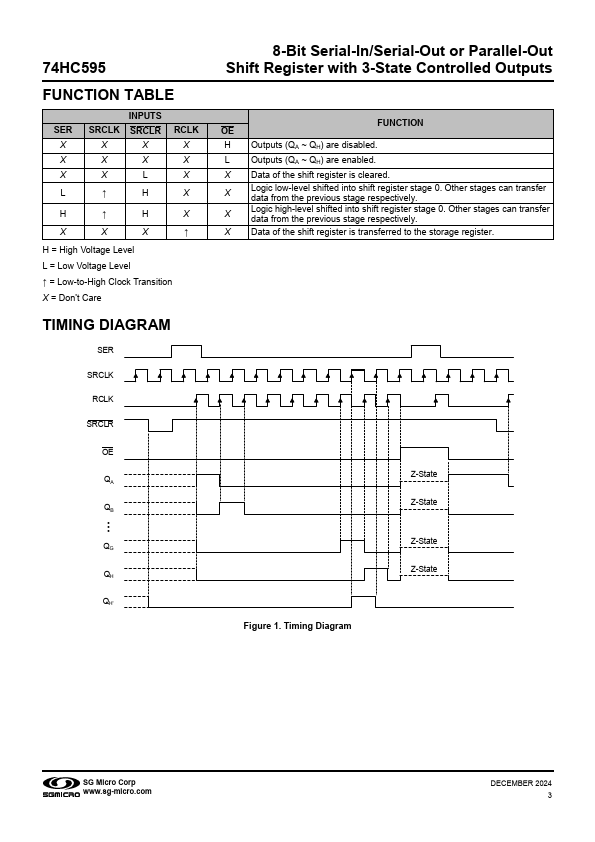

* Network Switch and Server Industrial Equipment Medical Equipment LED Matrix Control LOGIC DIAGRAM Stage 0 Stage 1 Stage 2 to 6 Stage 7 SER DQ DQ DFF DFF CR CR … DQ QH' DFF CR SRCLK SRCLR DQ DFF DQ DFF … C C RCLK OE DQ DFF C QA SG Micro Corp www. sg-micro. com QB QC to QG
