BAS16 Datasheet Preview

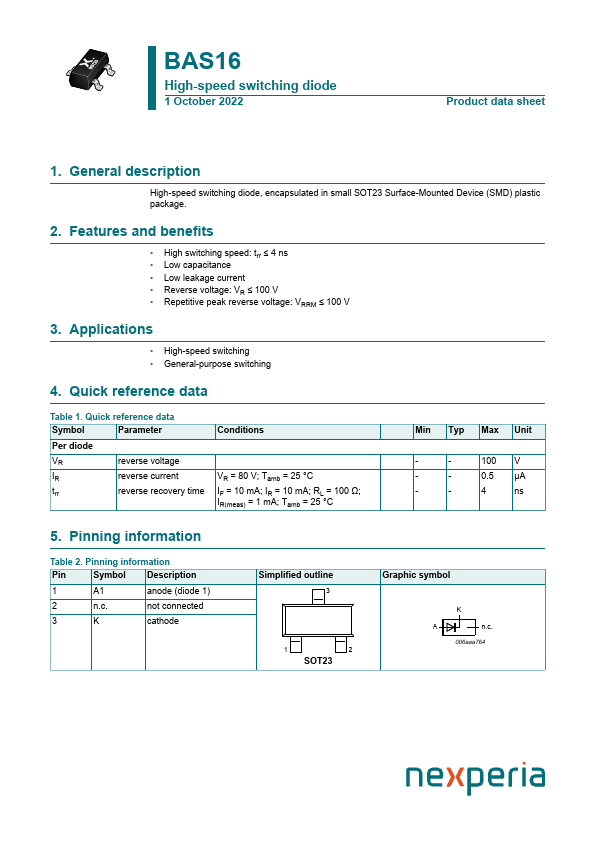

BAS16 Datasheet

High-speed switching diode

No Preview Available !

BAS16 series
High-speed switching diodes
Rev. 6 — 24 September 2014
Product data sheet
1. Product profile
1.1 General description
High-speed switching diodes, encapsulated in small Surface-Mounted Device (SMD)
plastic packages.
Table 1. Product overview
Type number Package
Nexperia JEITA
BAS16
SOT23
-
BAS16H
SOD123F -
BAS16J
SOD323F SC-90
BAS16L
SOD882 -
BAS16T
BAS16VV
SOT416
SOT666
SC-75
-
BAS16VY
BAS16W
BAS316
BAS516
SOT363
SOT323
SOD323
SOD523
SC-88
SC-70
SC-76
SC-79
JEDEC
TO-236AB
-
-
Configuration
single
single
single
-
single
-
single
-
triple isolated
-
triple isolated
-
single
-
single
-
single
Package
configuration
small
small and flat lead
very small and flat
lead
leadless ultra
small
ultra small
ultra small and flat
lead
very small
very small
very small
ultra small and flat
lead
1.2 Features and benefits
High switching speed: trr 4 ns
Low leakage current
Repetitive peak reverse voltage:
VRRM 100 V
AEC-Q101 qualified
Low capacitance
Reverse voltage: VR 100 V
Small SMD plastic packages
1.3 Applications
High-speed switching
General-purpose switching




nexperia

BAS16 Datasheet Preview

BAS16 Datasheet

High-speed switching diode

No Preview Available !

Nexperia
BAS16 series
High-speed switching diodes

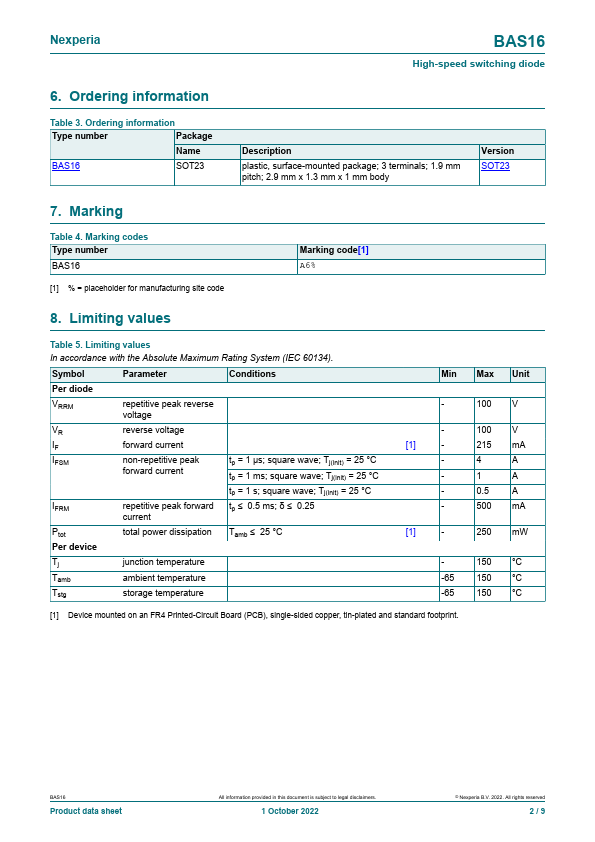

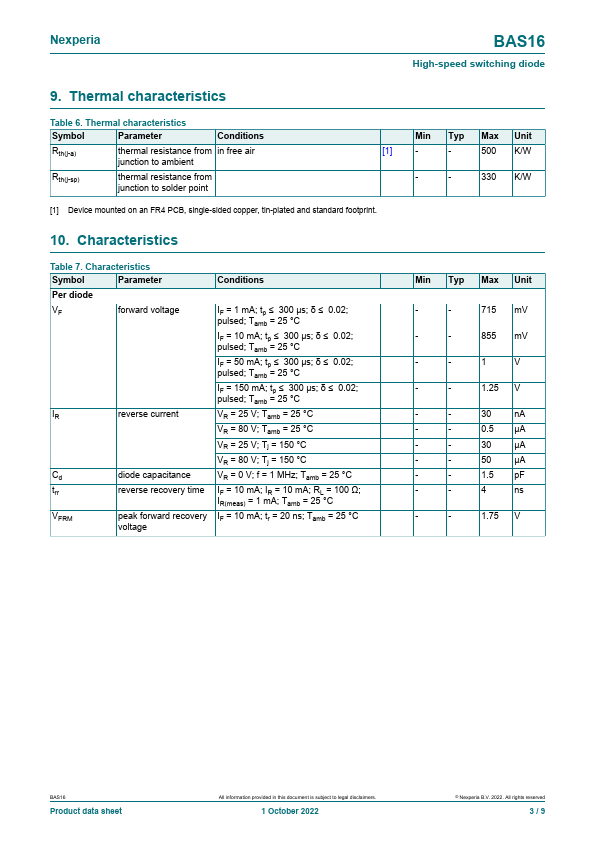

1.4 Quick reference data
Table 2. Quick reference data
Tamb = 25 C unless otherwise specified.
Symbol Parameter
Conditions
Min Typ Max Unit
Per diode
VR
reverse voltage
-
-
100 V
IR
reverse current
VR = 80 V
-
-
0.5 A
trr
reverse recovery IF = 10 mA; IR = 10 mA;
-
-
4
ns
time
RL = 100 ; IR(meas) = 1 mA
2. Pinning information
Table 3. Pinning
Pin
Description
BAS16; BAS16T; BAS16W
1
anode
2
not connected
3
cathode
BAS16H; BAS16J; BAS316; BAS516
1
cathode
2
anode
BAS16L
1
2
cathode
anode
BAS16VV; BAS16VY
1
anode (diode 1)
2
anode (diode 2)
3
anode (diode 3)
4
cathode (diode 3)
5
cathode (diode 2)
6
cathode (diode 1)
[1] The marking bar indicates the cathode.
Simplified outline Graphic symbol
3
1
2
006aaa144
[1]
1
2
001aab540
[1]
1
2
Transparent
top view
3
1
2
006aaa764
1
2
006aab040
1
2
006aab040
6
5
4
654
1
2
3
001aab555
123
006aab106
BAS16_SER
Product data sheet
