BSS138PW N-channel MOSFET

nexperia

BSS138PW Description

BSS138PW 60 V, 320 mA N-channel Trench MOSFET Rev.1 * 2 November 2010 Product data sheet 1.Product profile 1.1 General .
N-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package using Trench MOSF.

BSS138PW Features

* Logic-level compatible
* Very fast switching
* Trench MOSFET technology

BSS138PW Applications

* Relay driver
* High-speed line driver
* Low-side loadswitch
* Switching circuits 1.4 Quick reference data Table 1. Symbol VDS VGS ID Quick reference data Parameter drain-source voltage gate-source voltage drain current RDSon drain-source on-state resistance Co

📥 Download Datasheet

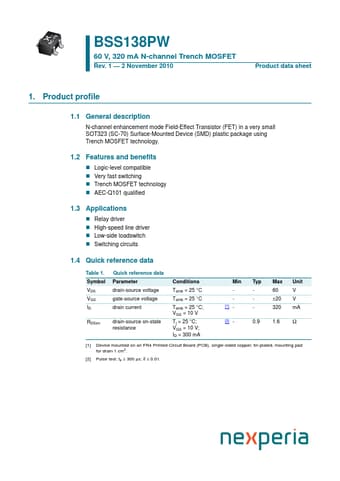

BSS138PW Datasheet Preview — Preview of BSS138PW PDF
