PLCCE-032-S1-TT Chip Carrier Socket

PLCCE-020-S1-TT PLCCE-028-S1-TT PLCCE-032-S1-TT PLCCE-044-S1-TT PLCCE-052-S1-TT PLCCE-068-S1-TT PLCCE-084-S1-TT A .590 [14.99] 0.690 [17.53] 0.690 [17.53] 0.890 [22.61] 0.990 [25.15] 1.190 [30.23] 1.390 [35.31] B .590 [14.99] 0.690 [17.53] 0.690 [17.53] 0.890 [22.61] 0.990 [25.15] 1.190 [30.23] 1..

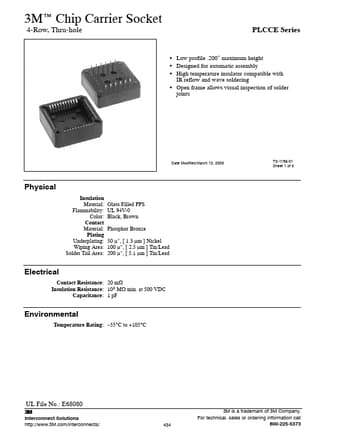

3M Chip Carrier Socket 4-Row, Thru-hole PLCCE Series S Low profile .200″ maximum height S Designed for automatic assembly S High temperature insulator compatible with IR reflow and wave soldering S Open frame allows visual inspection of solder joints Date Modified:March 10, 2003 Physical Insulation Material: Glass Filled PPS Flammability: UL 94V-0 Color: Black, Brown Contact Material: Phosphor Bronze Plating Underplating: 50 µ″, [ 1.3 µm ] Nickel Wiping Area: 100 µ″, [ 2.5 µm ] Tin/Lead So.
