3PD5651E, CMOS Digital-to-Analog Converter

3PD5651E High-speed, 10-Bit, 125MSPS, CMOS Digital-to-Analog Converter .

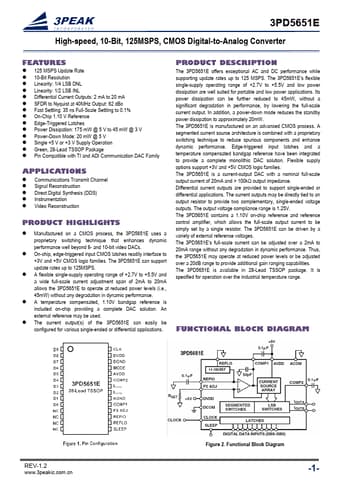

datasheet Preview Page 1 from Datasheet4u.com

3PD5651E-3PEAK.pdf

3PD5651E Datasheet Preview — Preview of 3PD5651E PDF

Datasheet Details

Part number:

3PD5651E

Manufacturer:

3PEAK

File Size:

1.66 MB

Description:

CMOS Digital-to-Analog Converter

Features

* 125 MSPS Update Rate
* 10-Bit Resolution
* Linearity: 1/4 LSB DNL
* Linearity: 1/2 LSB INL
* Differential Current Outputs: 2 mA to 20 mA
* SFDR to Nyquist at 40MHz Output: 62 dBc
* Fast Settling: 35 ns Full-Scale Settling to 0.1%
* On-Chip 1.10 V Reference
* Edg

Applications

* Communications Transmit Channel
* Signal Reconstruction
* Direct Digital Synthesis (DDS)
* Instrumentation
* Video Reconstruction PRODUCT HIGHLIGHTS
* Manufactured on a CMOS process, the 3PD5651E uses a proprietary switching technique that enhances dynamic performance well
