3PD9708E, 3PD9708, 8-Bit CMOS Digital-to-Analog Converter

3PD9708(E) 8-Bit CMOS Digital-to-Analog Converter .
The 3PD9708(E) offers exceptional AC and DC performance while supporting update rates up to 125 MSPS.

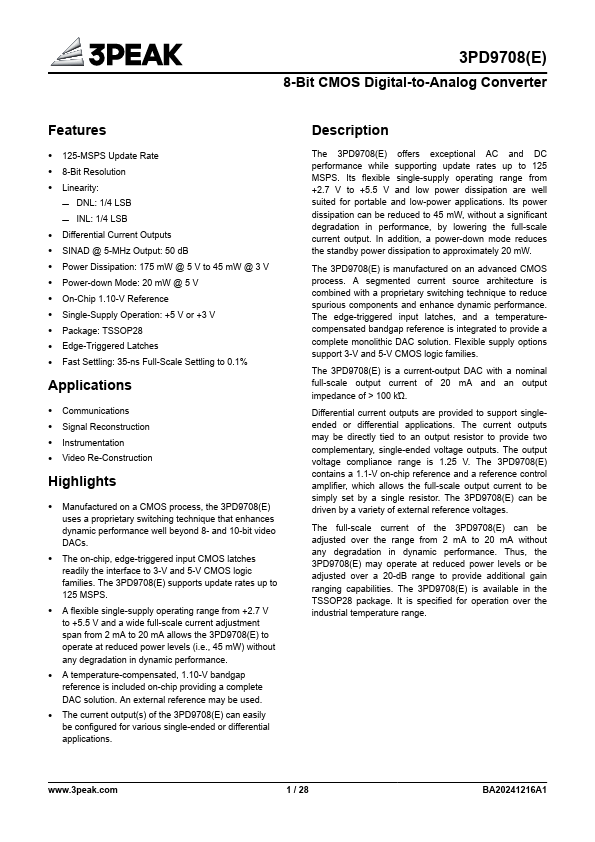

datasheet Preview Page 1 from Datasheet4u.com

3PD9708-3PEAK.pdf

3PD9708E Datasheet Preview — This datasheet PDF includes multiple part numbers: 3PD9708E, 3PD9708. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

3PD9708E, 3PD9708

Manufacturer:

3PEAK

File Size:

2.88 MB

Description:

8-Bit CMOS Digital-to-Analog Converter

Note:

This datasheet PDF includes multiple part numbers: 3PD9708E, 3PD9708.
Please refer to the document for exact specifications by model.

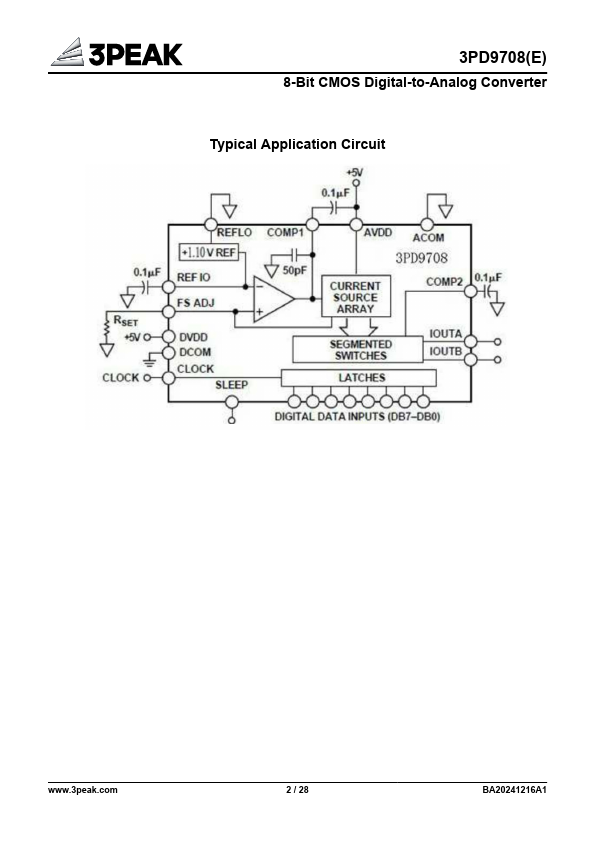

Features

* 125-MSPS Update Rate
* 8-Bit Resolution
* Linearity:
* DNL: 1/4 LSB
* INL: 1/4 LSB
* Differential Current Outputs
* SINAD @ 5-MHz Output: 50 dB
* Power Dissipation: 175 mW @ 5 V to 45 mW @ 3 V
* Power-down Mode: 20 mW @ 5 V

Applications

* Communications
* Signal Reconstruction
* Instrumentation
* Video Re-Construction Highlights
* Manufactured on a CMOS process, the 3PD9708(E) uses a proprietary switching technique that enhances dynamic performance well beyond 8- and 10-bit video DACs.
