3PD9708 Datasheet, Converter, 3PEAK

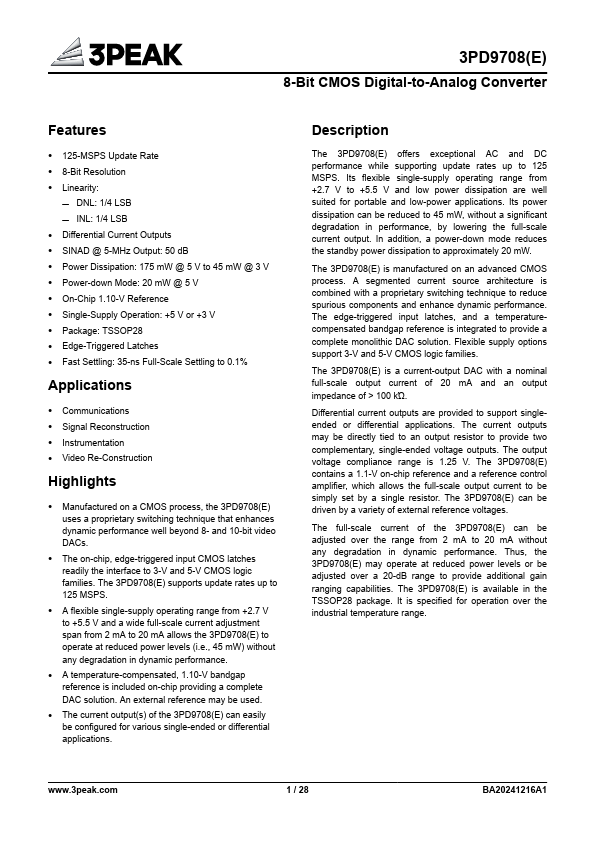

3PD9708 Features

• Converter 125 MSPS Update Rate 8-Bit Resolution Linearity: 1/4 LSB DNL Linearity: 1/4 LSB INL Differential Current Outputs SINAD @ 5 MHz Output: 50 dB Power Dissipation: 175 mW @ 5 V to 45 mW @ 3

PDF File Details

Part number:

3PD9708

Manufacturer:

3PEAK

File Size:

551.33kb

Download:

📄 Datasheet

Description:

8-bit cmos digital-to-analog converter.

3PD9708 Application

• Applications Communications Signal Reconstruction Instrumentation Video re-construction full-scale output current of 20 mA and > 100 kΏ output impe
