TPB4056B - 1-A Single Cell Li-Ion Battery Linear Charger

📥 Download Datasheet

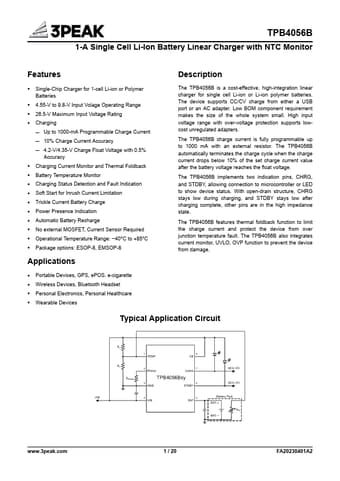

Preview of TPB4056B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TPB4056B
Manufacturer 3PEAK
File Size 1.24 MB
Description 1-A Single Cell Li-Ion Battery Linear Charger
Datasheet download datasheet TPB4056B-3PEAK.pdf

TPB4056B Product details

Description

Single-Chip Charger for 1-cell Li-ion or Polymer Batteries 4.55-V to 9.8-V Input Volage Operating Range 26.5-V Maximum Input Voltage Rating Charging Up to 1000-mA Programmable Charge Current 10% Charge Current Accuracy 4.2-V/4.35-V Charge Float Voltage with 0.5% Accuracy Charging Current Monitor and Thermal Foldback Battery Temperature Monitor Charging Status Detection and Fault Indication
