TPB7462 4s High Accuracy Secondary Hardware Protector

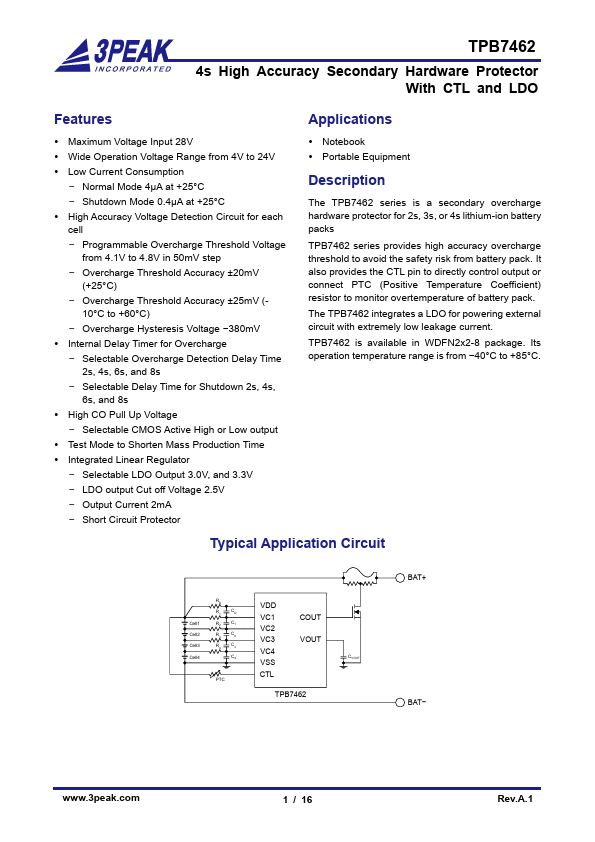

The TPB7462 series is a secondary overcharge hardware protector for 2s, 3s, or 4s lithium-ion battery packs TPB7462 series provides high accuracy overcharge threshold to avoid the safety risk from battery pack. It also provides the CTL pin to directly control output or connect PTC (Positive Temperat.

TPB7462 Features

* Applications

* Maximum Voltage Input 28V

* Wide Operation Voltage Range from 4V to 24V

* Low Current Consumption

* Normal Mode 4μA at +25°C

* Shutdown Mode 0.4μA at +25°C

* High Accuracy Voltage Detection Circuit for each cell

* Programmable Overcharge Thres

TPB7462-3PEAK.pdf

TPB7462 Datasheet Preview — Preview of TPB7462 PDF

Datasheet Details

Part number:

TPB7462

Manufacturer:

3PEAK

File Size:

605.10 KB

Description:

4s high accuracy secondary hardware protector.
