TPB70R360M Datasheet - Unigroup

700V Super-junction Power MOSFET

TPB70R360M Features

* l Very low FOM RDS(on)×Qg l 100% avalanche tested l Easy to use/drive l RoHS compliant Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply (UPS) l Power Factor Correction (PFC) l Charger TO-220F TO-263 TO-252 TO-220FP-NL Device Marking and Package Information Device

TPB70R360M General Description

700V Super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs，designed according to the SJ principle. The Multi-EPI SJ MOSFET provide an extremely low switching, communication and conduction losses device with highest robustness make especi.

TPB70R360M Datasheet (936.03 KB)

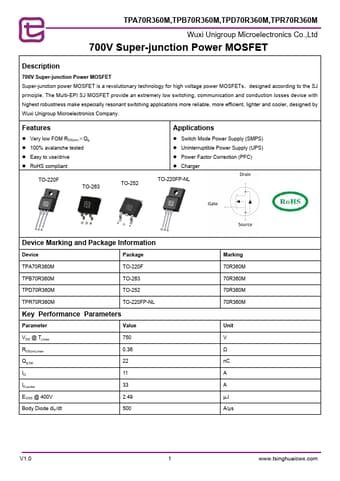

TPB70R360M Datasheet Preview — Preview of TPB70R360M PDF

Datasheet Details

Part number:

TPB70R360M

Manufacturer:

Unigroup

File Size:

936.03 KB

Description:

700v super-junction power mosfet.
