TPCMP271 5V 10-ns Comparators

TPCMP271 Description

TPCMP271/TPCMP272 5-V, 10-ns Comparators with Push-Pull Output .
Power Supply Voltage: 2. Low Supply Current: 650 μA per channel. Propagation Delay: 10 ns. Internal.

TPCMP271 Applications

* The devices are low-power, high-speed comparators with internal hysteresis. The common-mode input voltage range extends 100 mV beyond the power rail. The devices have 10-ns propagation delay which makes the devices suitable for high-speed applications. The internal input hysteresis eliminates outpu

📥 Download Datasheet

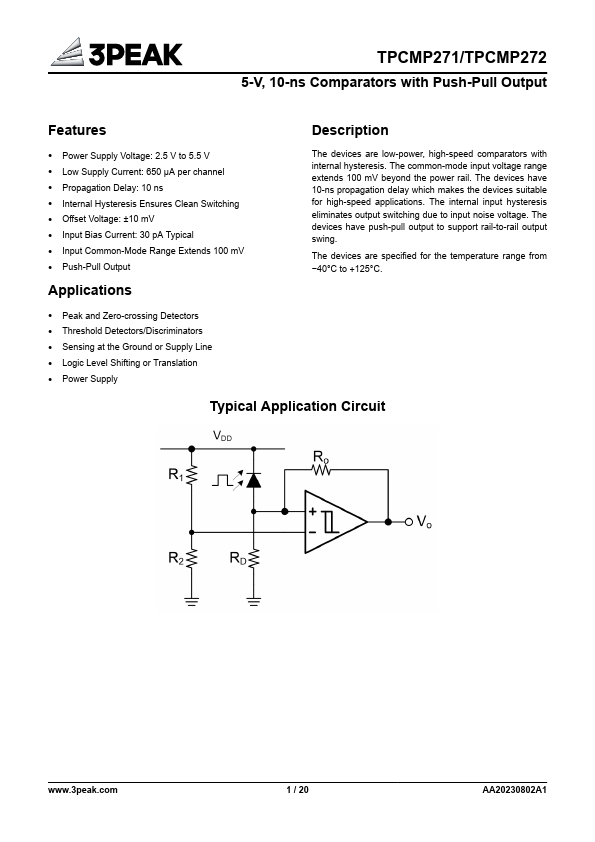

Preview of TPCMP271 PDF

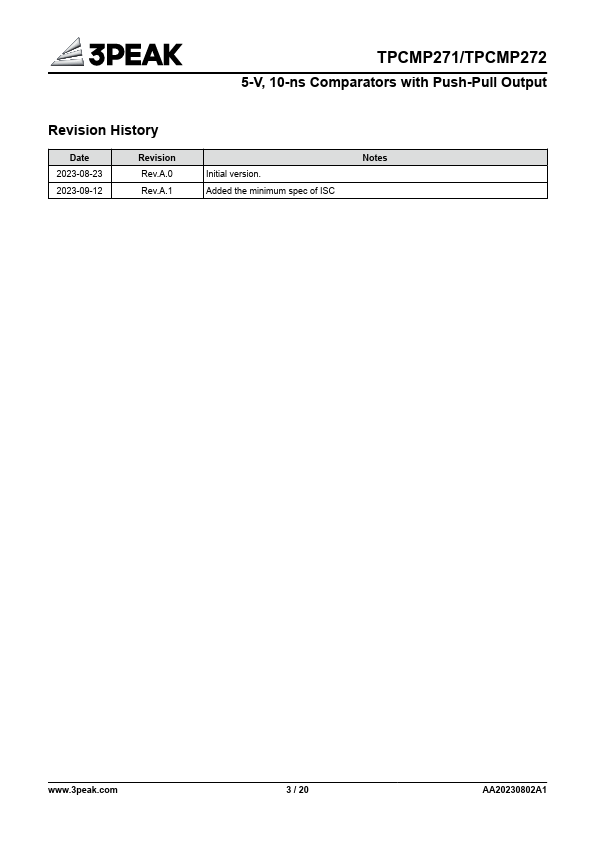

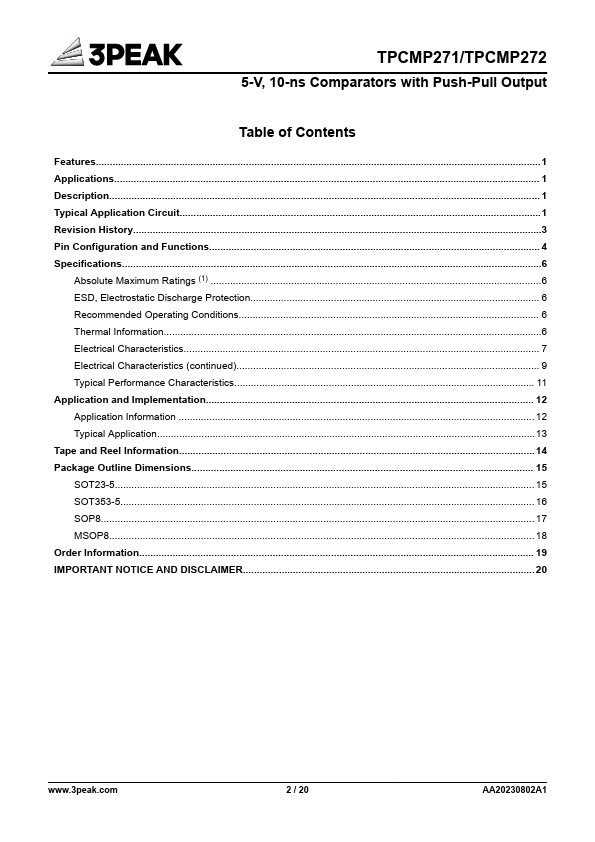

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPCMP271
Manufacturer
3PEAK
File Size
1.46 MB
Datasheet
TPCMP271-3PEAK.pdf
Description
5V 10-ns Comparators
