TPCMP272, TPCMP271 5V 10-ns Comparators

TPCMP272 Description

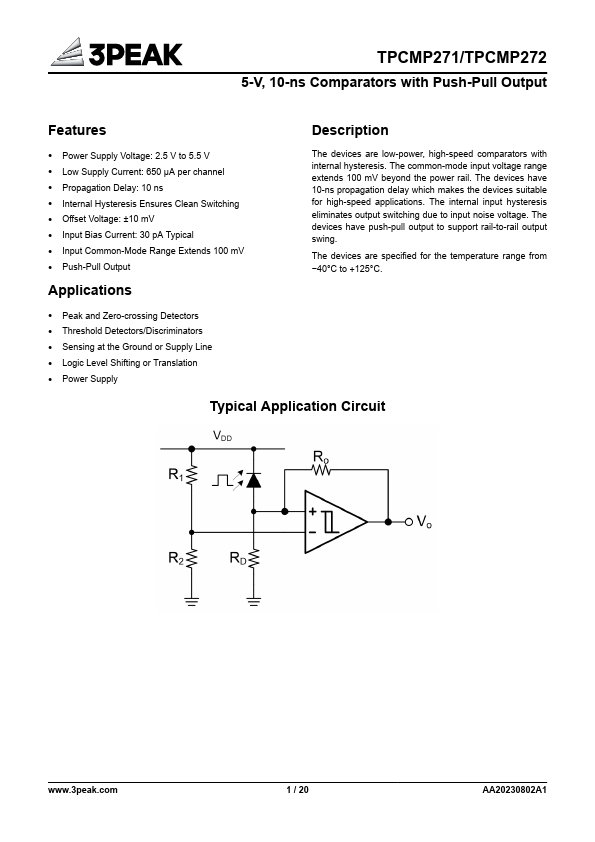

TPCMP271/TPCMP272 5-V, 10-ns Comparators with Push-Pull Output .
Power Supply Voltage: 2. Low Supply Current: 650 μA per channel. Propagation Delay: 10 ns. Internal.

TPCMP272 Applications

* The devices are low-power, high-speed comparators with internal hysteresis. The common-mode input voltage range extends 100 mV beyond the power rail. The devices have 10-ns propagation delay which makes the devices suitable for high-speed applications. The internal input hysteresis eliminates outpu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPCMP272, TPCMP271. Please refer to the document for exact specifications by model.

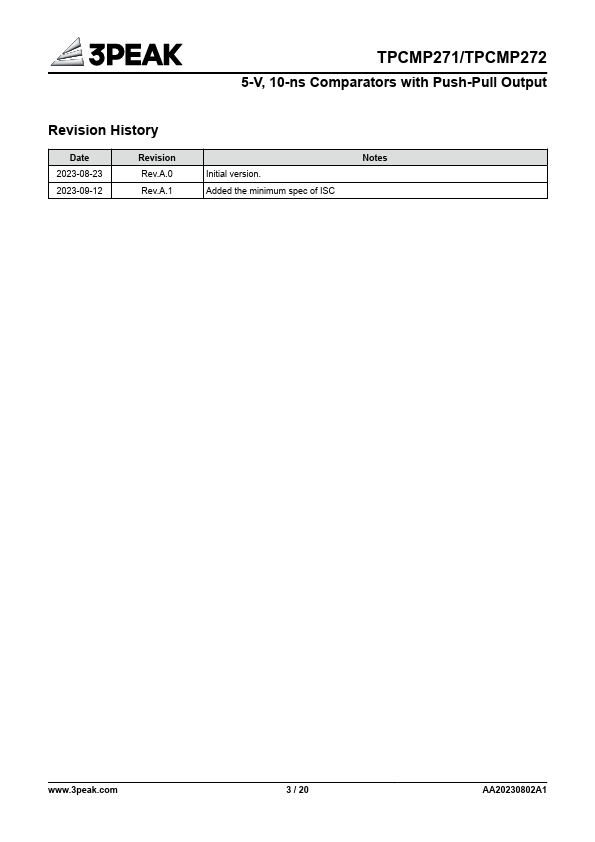

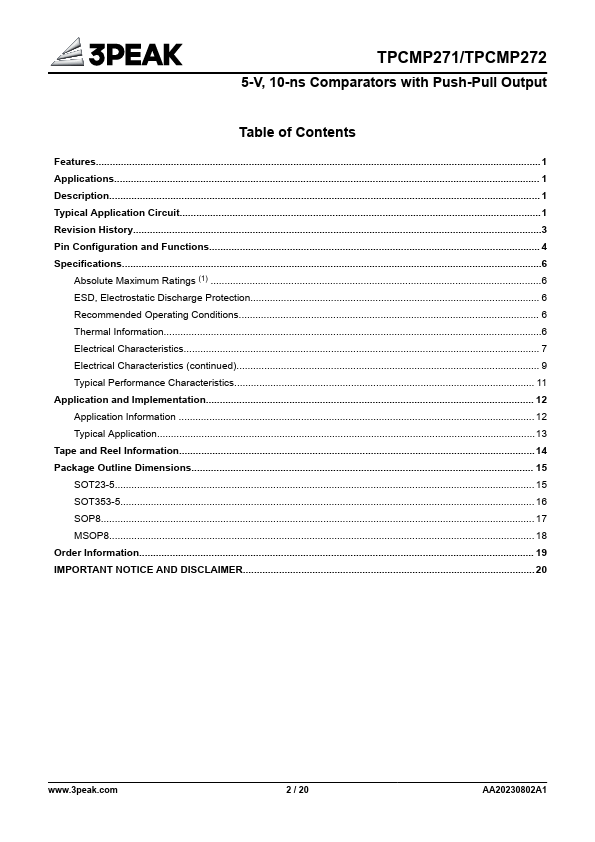

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPCMP272, TPCMP271
Manufacturer
3PEAK
File Size
1.46 MB
Datasheet
TPCMP271-3PEAK.pdf
Description
5V 10-ns Comparators
Note
This datasheet PDF includes multiple part numbers: TPCMP272, TPCMP271.
Please refer to the document for exact specifications by model.
