TPCMP231Q 5-V 55-ns Comparators

TPCMP231Q Description

TPCMP231Q/TPCMP232Q 5-V, 55-ns Comparators with Push-Pull Output .
Power Supply Voltage: 1. Low Supply Current: 350 μA per Channel. Propagation Delay: 55 ns. Offset V.

TPCMP231Q Applications

* Grade 1:
* 40°C to 125°C TA Applications The devices are the newest comparators with 55-ns propagation delay. The devices are optimized for single +3-V or +5-V operation. The input common-mode range extends 100 mV beyond the rail. The outputs are push-pull and can sink or source 1

📥 Download Datasheet

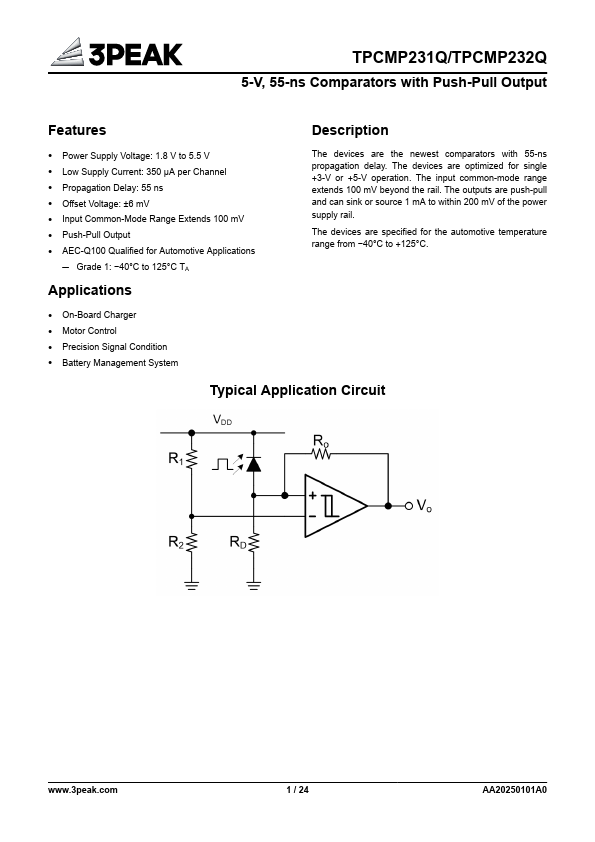

Preview of TPCMP231Q PDF

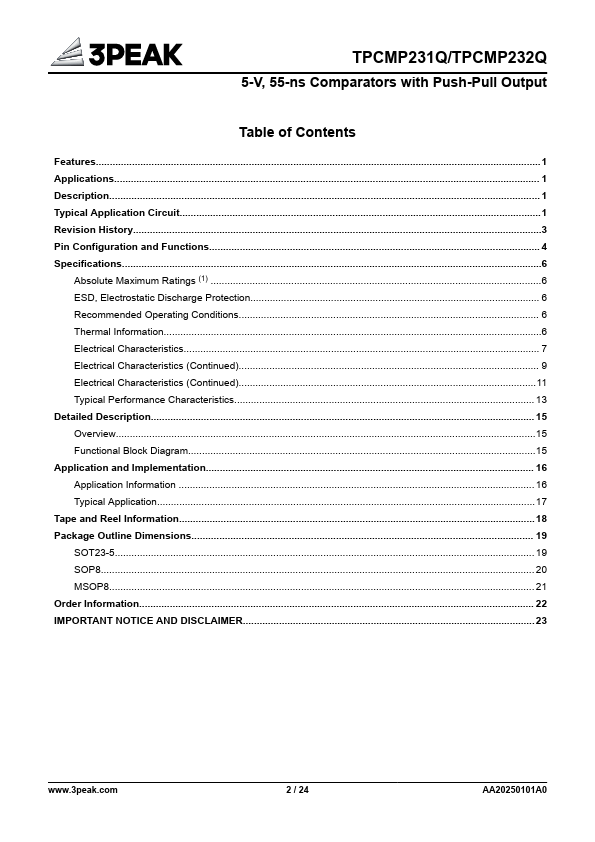

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPCMP231Q
Manufacturer
3PEAK
File Size
1.72 MB
Datasheet
TPCMP231Q-3PEAK.pdf
Description
5-V 55-ns Comparators
