TPF607A, TPF632A - Audio Line Driver

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPF607A, TPF632A. Please refer to the document for exact specifications by model.

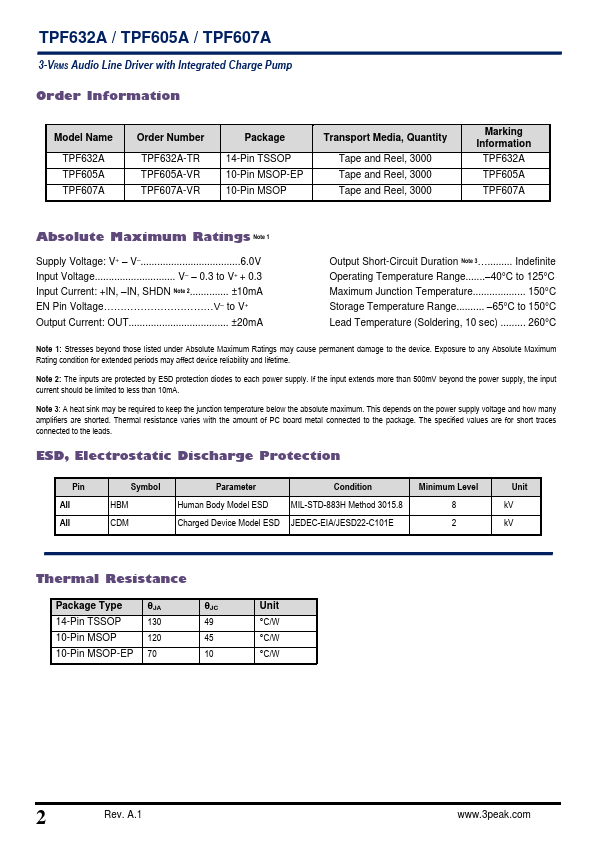

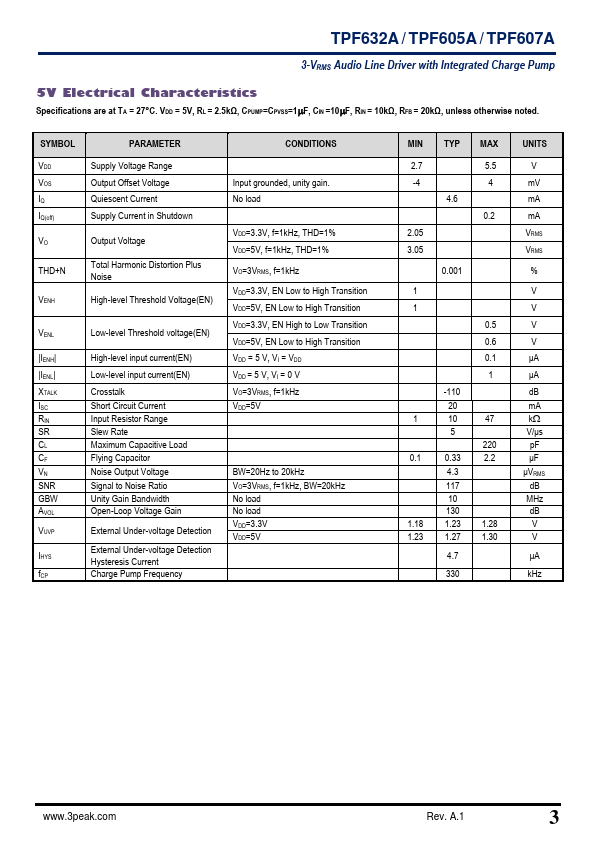

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TPF607A, TPF632A
Manufacturer 3PEAK
File Size 793.91 KB
Description Audio Line Driver
Datasheet download datasheet TPF632A-3PEAK.pdf
Note This datasheet PDF includes multiple part numbers: TPF607A, TPF632A.
Please refer to the document for exact specifications by model.

TPF607A Product details

Description

3-VRMS Output into 2.5kΩ Load with 5V Supply 2-VRMS Output into 2.5kΩ Load with 3.3V Supply Integrated Charge Pump Generates Negative Supply Rail SNR Enhanced PVDD Power Off Delay Function Low THD+N: 0.001% Drives 600Ω Load Stable with 220pF Capacitive Load Pop-Free Under-Voltage Protection (TPF632A/605A) Pop-Free Enable Control 40°C to 85°C Operation Range Robust 8kV (Output-Pin) HBM ESD Rating On All Pins R
