TPF607C, TPF632C - Audio Line Driver

3PEAK

TPF607C Datasheet Preview — This datasheet PDF includes multiple part numbers: TPF607C, TPF632C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TPF607C, TPF632C
Manufacturer	3PEAK
File Size	913.16 KB
Description	Audio Line Driver
Datasheet	TPF632C-3PEAK.pdf
Note	This datasheet PDF includes multiple part numbers: TPF607C, TPF632C. Please refer to the document for exact specifications by model.

TPF607C Product details

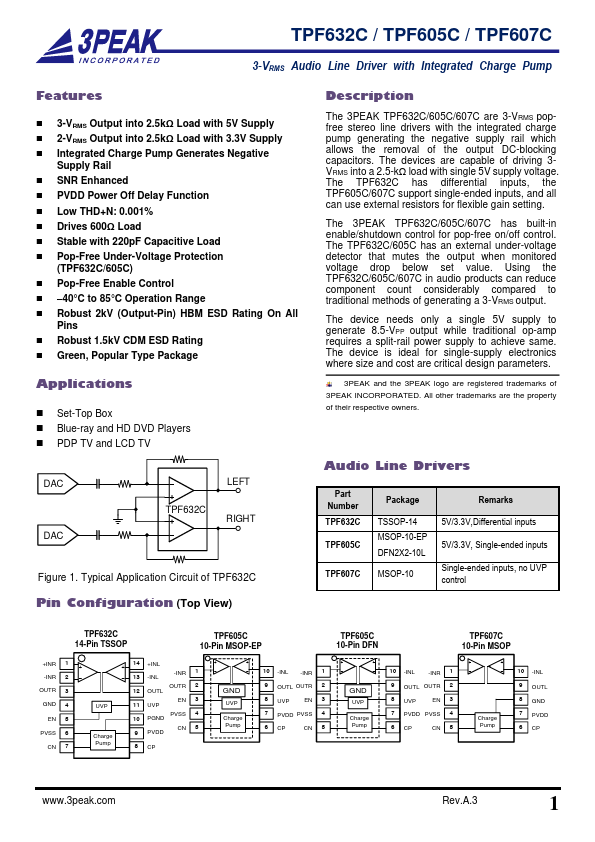

Description

The 3PEAK TPF632C/605C/607C are 3-VRMS popfree stereo line drivers with the integrated charge pump generating the negative supply rail which allows the removal of the output DC-blocking capacitors.

Features

3-VRMS Output into 2.5kΩ Load with 5V Supply.
2-VRMS Output into 2.5kΩ Load with 3.3V Supply.
Integrated Charge Pump Generates Negative Supply Rail.
SNR Enhanced.
PVDD Power Off Delay Function.
Low THD+N: 0.001%.
Drives 600Ω Load.
Stable with 220pF Capacitive Load.
Pop-Free Under-Voltage Protection (TPF632C/605C).
Pop-Free Enable Control.
40°C to 85°C Operation Range.

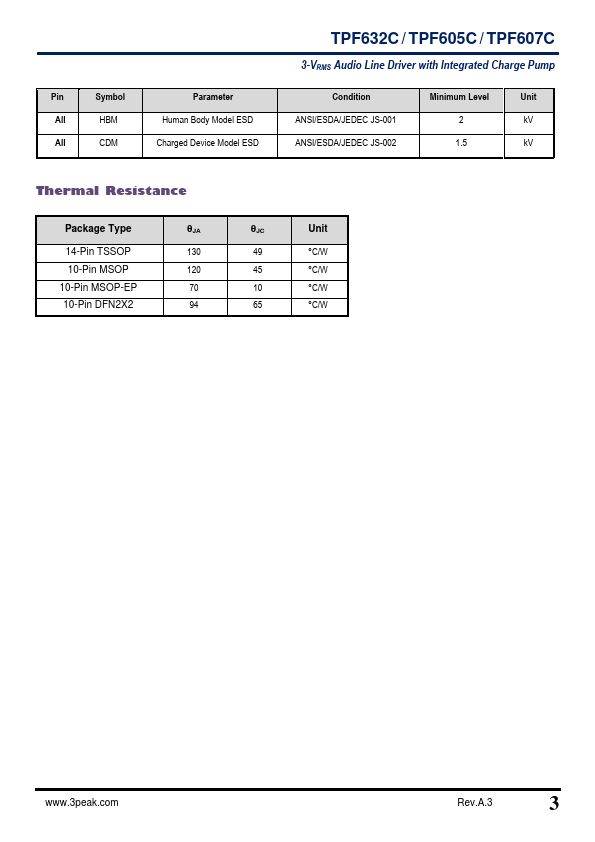

Robust 2kV (Output-Pin) HBM ESD Rating On All Pins.
Ro.
