TPF632C Datasheet, Driver, 3PEAK

TPF632C Features

  • Driver
  • 3-VRMS Output into 2.5kΩ Load with 5V Supply
  • 2-VRMS Output into 2.5kΩ Load with 3.3V Supply
  • Integrated Charge Pump Generates Negative Supply Rail

PDF File Details

Part number:

TPF632C

Manufacturer:

3PEAK

File Size:

1.26MB

Download:

📄 Datasheet

Description:

Audio line driver. The 3PEAK TPF632C/605C/607C are 3-VRMS popfree stereo line drivers with the integrated charge pump generating the negative supply rai

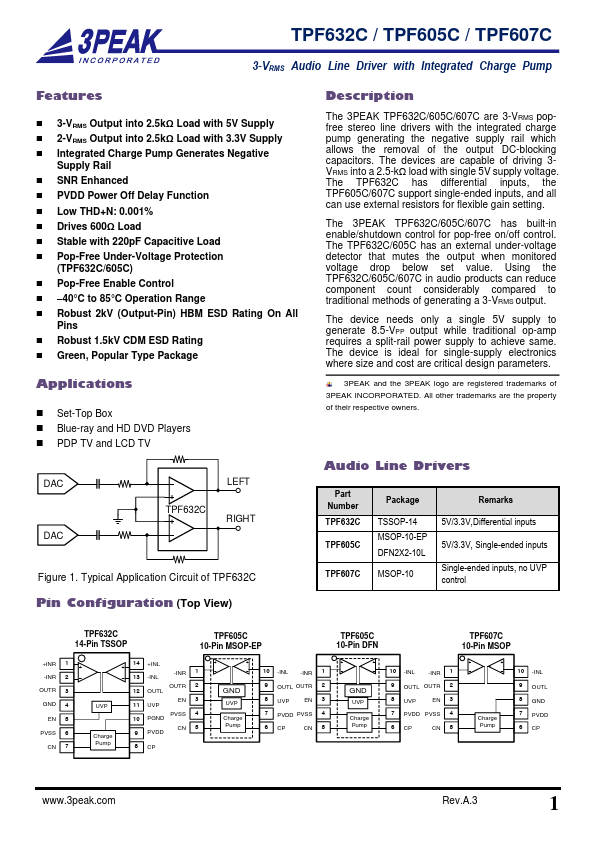

Datasheet Preview: TPF632C 📥 Download PDF (1.26MB)
Page 2 of TPF632C Page 3 of TPF632C

TPF632C Application

  • Applications
  • Set-Top Box
  • Blue-ray and HD DVD Players
  • PDP TV and LCD TV DAC DAC LEFT TPF632C RIGHT Figure 1. Typic
