TPT29336 Datasheet - 3PEAK

TPT29336 - Dual Bidirectional I3C Bus and SMBus Voltage-Level Translator

The TPT29336 device is a dual bidirectional I3C, SMBus, and I3C voltage-level translator with an enable (EN) input, and work from 1.2V to 3.6V VREF1 and 1.8V to 5.5V VREF2.

The 3.5Ω Ron make the minimal propagation delay <1.5ns.

If EN is high, the translator switch is ON, and the SCL1 and SDA1 I/O a

TPT29336 Features

* Dual bidirectional Translator for SDA and SCL Lines in I3C Applications and SMBus Compatible

* Support multi-mode: Standard-mode (SM), Fastmode (FM), and Fast-mode Plus (FM+)

* I3C compatible (12.5 MHz supported)

* Less than 1.5 ns (max) Delay to Accommodate SM and FM I3C devices a

TPT29336-3PEAK.pdf

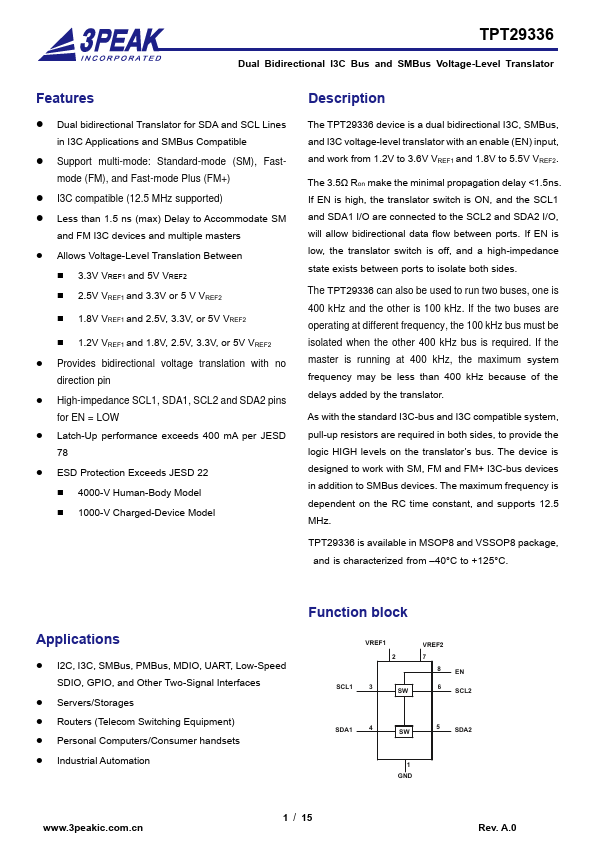

Preview of TPT29336 PDF

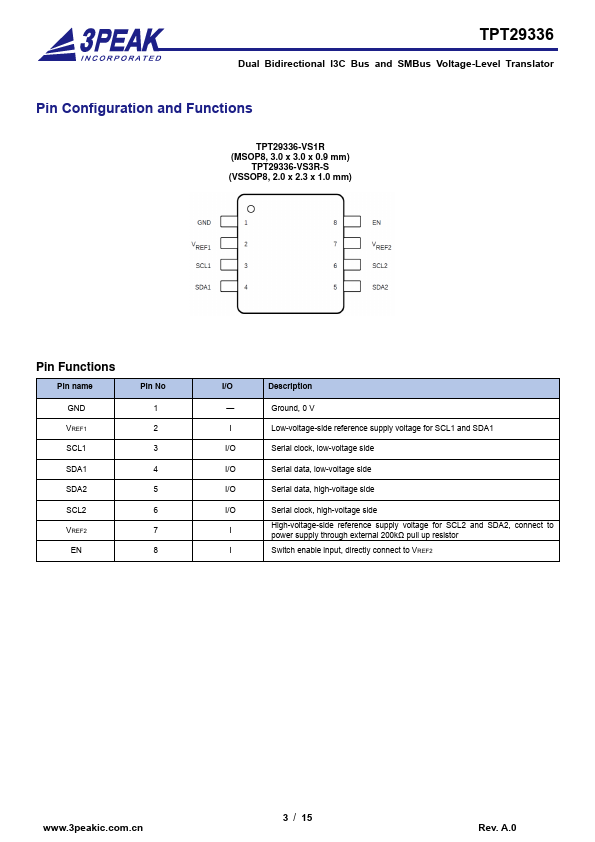

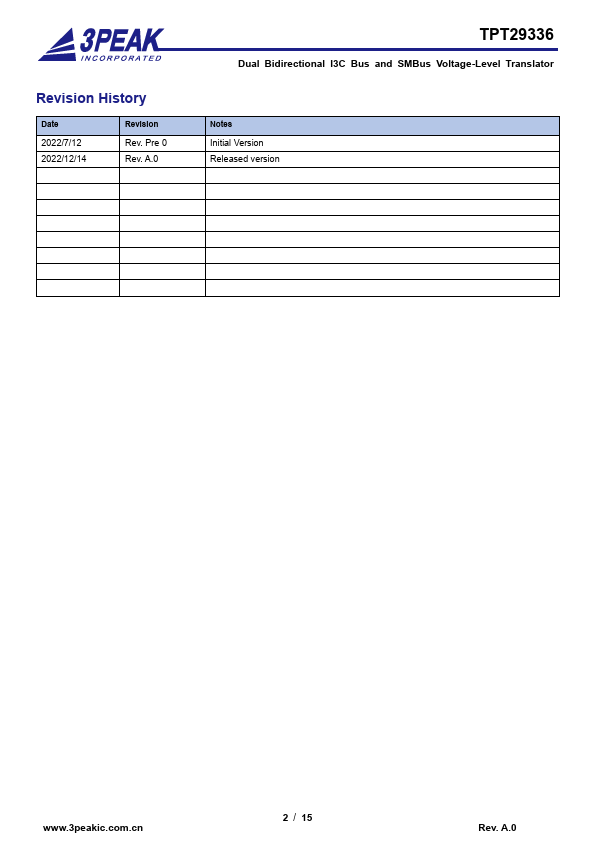

TPT29336 Datasheet Preview Page 2 TPT29336 Datasheet Preview Page 3

Datasheet Details

Part number:

TPT29336

Manufacturer:

3PEAK

File Size:

676.77 KB

Description:

Dual bidirectional i3c bus and smbus voltage-level translator.
