TPT7481 - Isolated Full- and Half-Duplex RS485 Transceiver

TPT7481 Description

TPT7481/TPT7482 Isolated Full- and Half-Duplex RS485 Transceiver .
The TPT7481 is a ±15-kV IEC61000 ESD protected, 3.

TPT7481 Applications

* Exceeds Requirements of EIA-485 Standard
* Hot Plug Circuitry - Tx and Rx Outputs Remain Three- State During Power-up/Power-down
* Supply Voltage: 3.0 V ~ 5.5 V
* Data Rate: 20-Mbps Isolated RS485
* Full Fail-Safe Receiver (Open, Short, Terminated)

📥 Download Datasheet

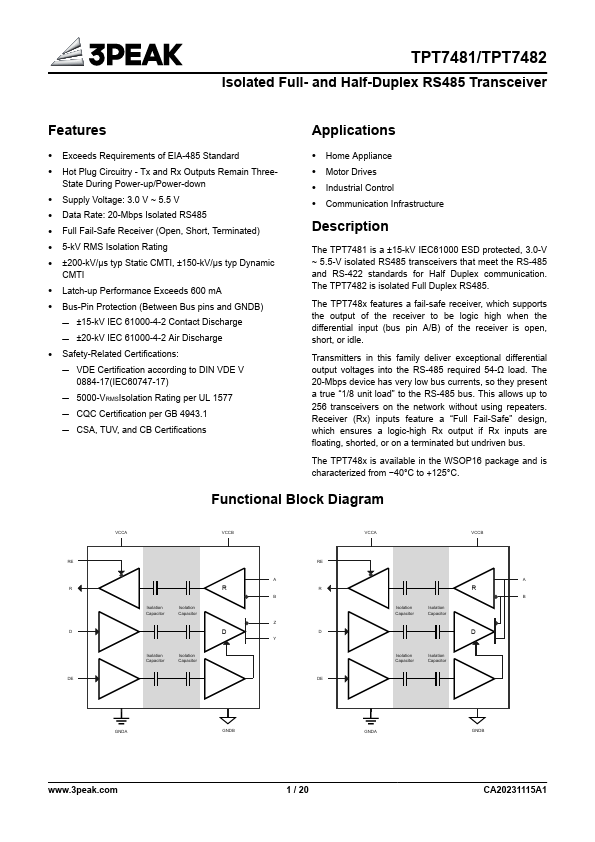

Preview of TPT7481 PDF

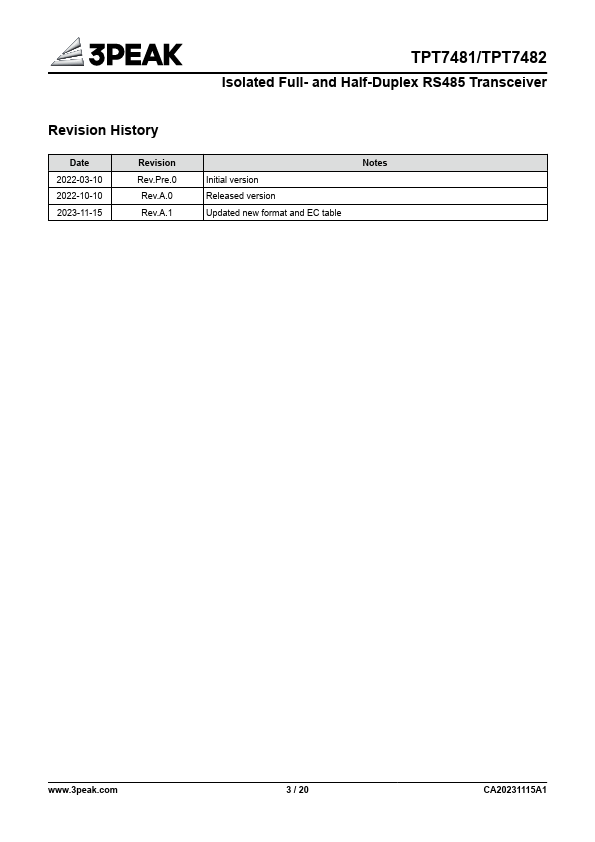

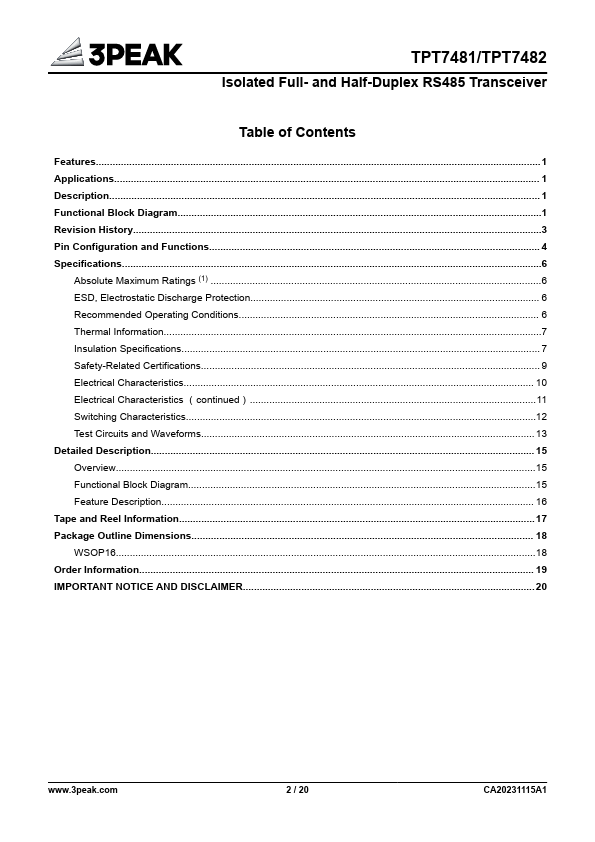

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT7481
Manufacturer
3PEAK
File Size
883.76 KB
Datasheet
TPT7481-3PEAK.pdf
Description
Isolated Full- and Half-Duplex RS485 Transceiver
