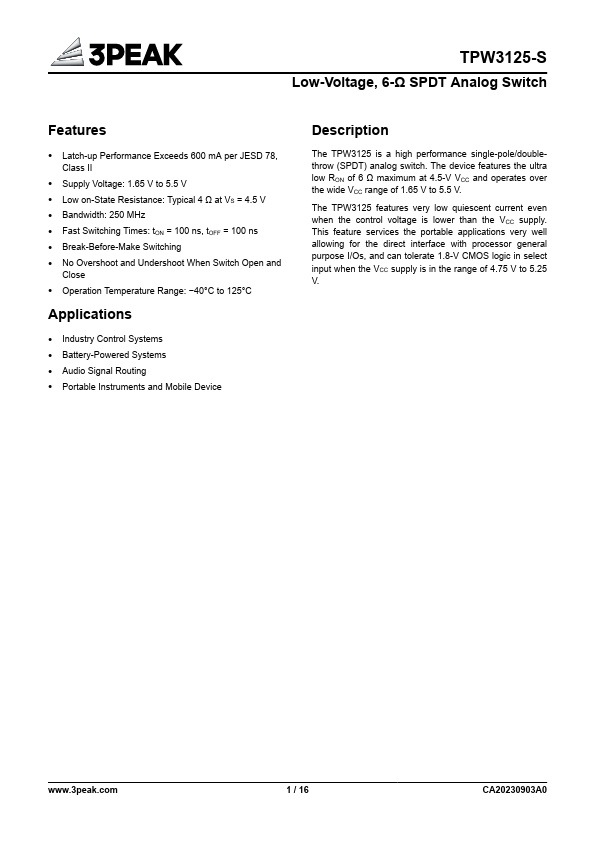

TPW3125-S Datasheet Preview — Preview of TPW3125-S PDF

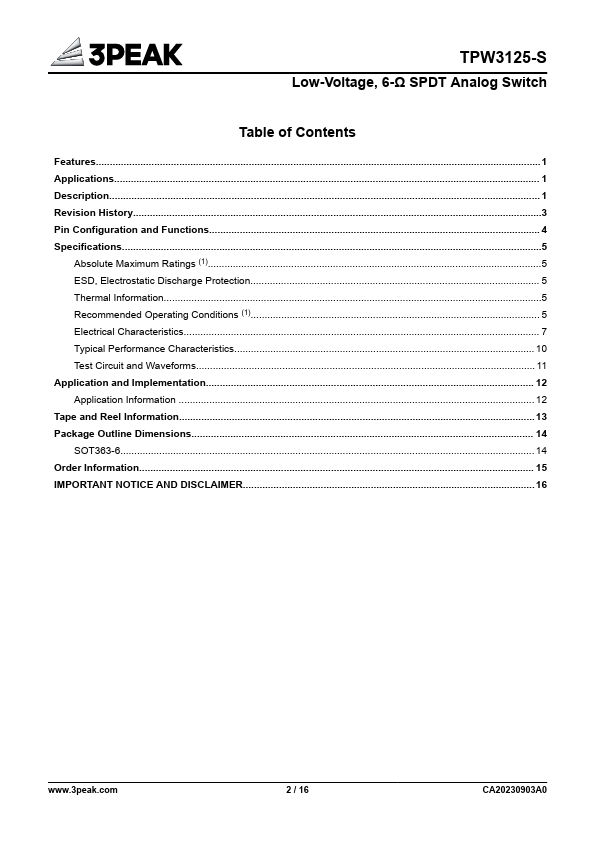

datasheet Preview Page 2

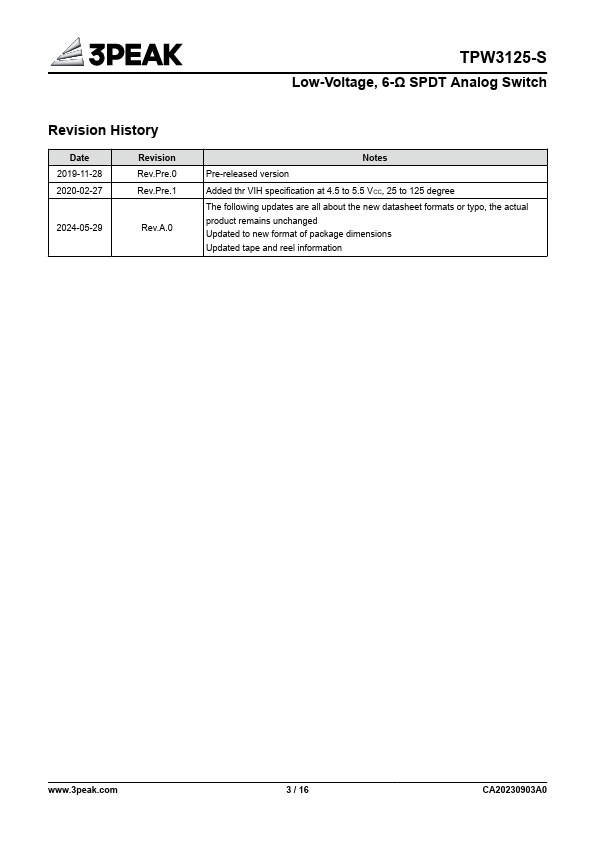

datasheet Preview Page 3

Datasheet Details

Part number	TPW3125-S
Manufacturer	3PEAK
File Size	936.97 KB
Description	Low-Voltage SPDT Analog Switch
Datasheet	TPW3125-S-3PEAK.pdf

TPW3125-S Product details

Description

The TPW3125 is a high performance single-pole/doublethrow (SPDT) analog switch.

Features

Latch-up Performance Exceeds 600 mA per JESD 78, Class II.
Supply Voltage: 1.65 V to 5.5 V.
Low on-State Resistance: Typical 4 Ω at VS = 4.5 V.
Bandwidth: 250 MHz.
Fast Switching Times: tON = 100 ns, tOFF = 100 ns.
Break-Before-Make Switching.
No Overshoot and Undershoot When Switch Open and Close.
Operation Temperature Range:.
40°C to 125°C.
