TP1241L1 - 36V 1-MHz Op Amps

Datasheet Summary

Description

The TP124X series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response.

Features

  • Supply Voltage: 4.5V to 36V.
  • Offset Voltage: ±300μV Maximum.
  • Differential Input Voltage Range to Supply Rail, can Work as Comparator.
  • Input Rail to.
  • VS, Rail to Rail Output.
  • Bandwidth: 1 MHz.
  • Slew Rate: 0.7V/μs.
  • Excellent EMI Suppress Performance: 80dB at 1GHz.
  • Offset Voltage Temperature Drift: 2 μV/°C.
  • Low Noise: 30 nV/√Hz at 1kHz.
  • 2KV HBM, 1KV CDM.
  • 40°C to 125°C Operation Temperature Range.

📥 Download Datasheet

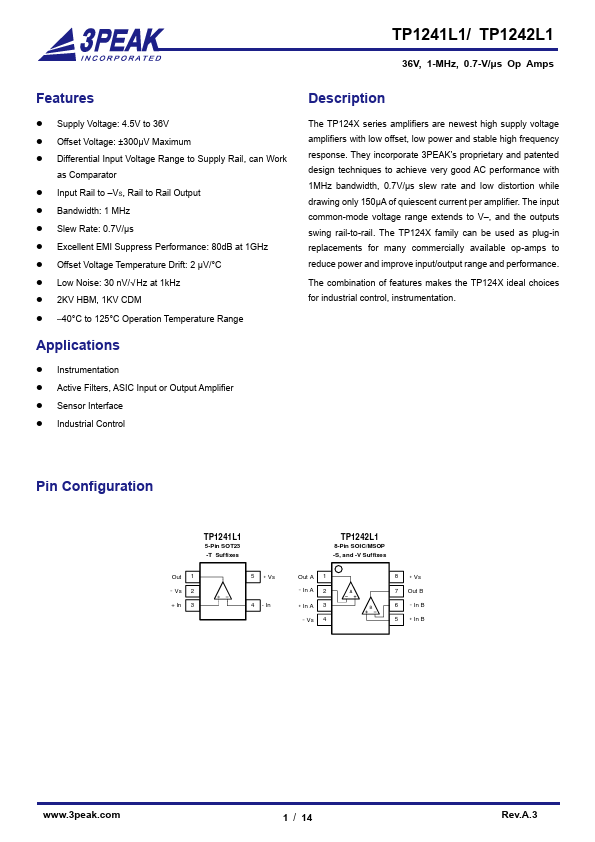

Datasheet preview – TP1241L1

Datasheet Details

Part number TP1241L1
Manufacturer 3Peak
File Size 734.45 KB
Description 36V 1-MHz Op Amps
Datasheet download datasheet TP1241L1 Datasheet

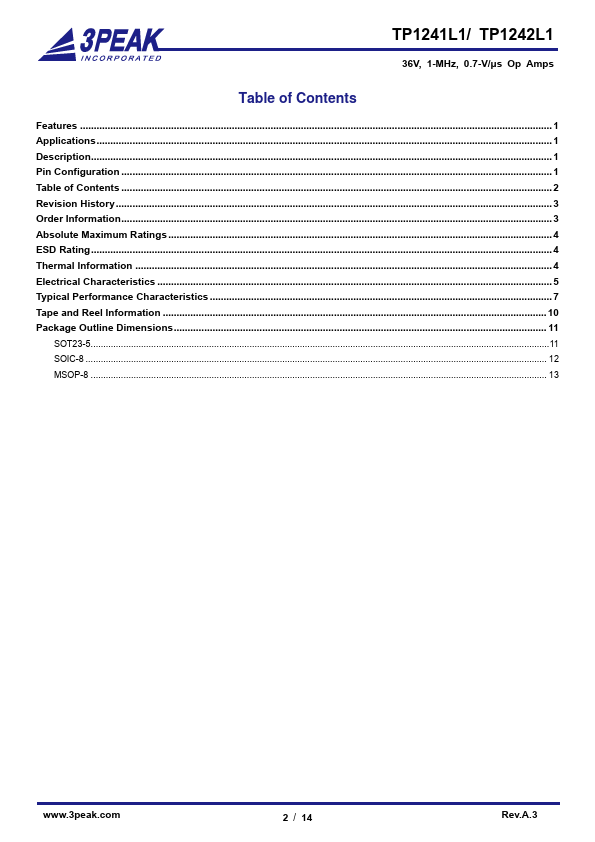

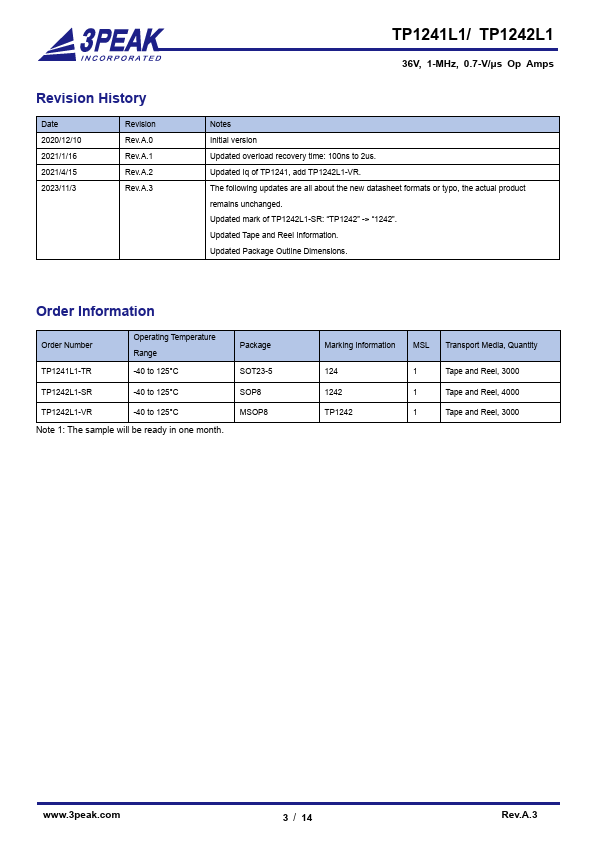

Additional preview pages of the TP1241L1 datasheet.

📁 Similar Datasheet

  • TP120 - Horizontal PC Mount Glass (Voltronics)
  • TP120H058WS - 1200V GaN FET (Transphorm)
  • TP1210S - Touch Panel (Han Touch)
  • TP1220L - P-Channel Enhancement-Mode MOS Transistors (TEMIC)
  • TP1251 - ILLUMINATED PUSHBUTTON SWITCHES (ETC)
  • TP125A - Current Transducers (Topstek)
  • TP1.5KE - Transient Voltage Suppression Diodes (Littelfuse)
  • TP1.5KE12A - Transient Voltage Suppression Diodes (Littelfuse)
  • TP1.5KE12CA - Transient Voltage Suppression Diodes (Littelfuse)
  • TP1.5KE13A - Transient Voltage Suppression Diodes (Littelfuse)
Other Datasheets by 3Peak

Full PDF Text Transcription

Click to expand full text
TP1241L1/ TP1242L1 36V, 1-MHz, 0.7-V/μs Op Amps Features ⚫ Supply Voltage: 4.5V to 36V ⚫ Offset Voltage: ±300μV Maximum ⚫ Differential Input Voltage Range to Supply Rail, can Work as Comparator ⚫ Input Rail to –VS, Rail to Rail Output ⚫ Bandwidth: 1 MHz ⚫ Slew Rate: 0.7V/μs ⚫ Excellent EMI Suppress Performance: 80dB at 1GHz ⚫ Offset Voltage Temperature Drift: 2 μV/°C ⚫ Low Noise: 30 nV/√Hz at 1kHz ⚫ 2KV HBM, 1KV CDM ⚫ –40°C to 125°C Operation Temperature Range Applications ⚫ Instrumentation ⚫ Active Filters, ASIC Input or Output Amplifier ⚫ Sensor Interface ⚫ Industrial Control Description The TP124X series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response.
