TP6001

Op Amps

TP6001 Features

* Supply Voltage: 2.1 V to 6.0 V

* Low Supply Current: 80 μA per channel

* Rail to Rail Input and Output

* Bandwidth: 1 MHz

* Slew Rate: 0.7 V/μs

* Excellent EMI Suppress Performance

* Offset Voltage: ±3 mV Maximum

* Offset Voltage Temperature Drift: 2 μV/°C

* Low

TP6001 General Description

The TP600X series are CMOS single, dual, quad opamps with RRIO, low offset, low power and stable high-frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve excellent AC performance with 1 MHz bandwidth, 0.7 V/μs slew rate, and low distortion while drawing.

TP6001 Datasheet (1.34 MB)

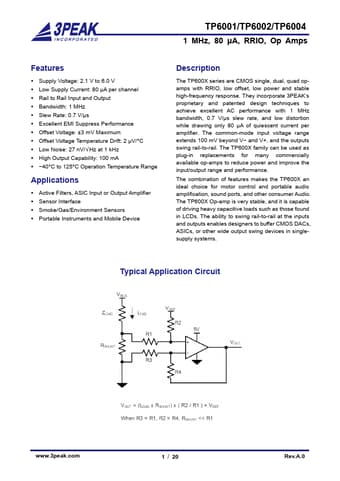

Preview of TP6001 PDF

Datasheet Details

Part number:

TP6001

Manufacturer:

3Peak

File Size:

1.34 MB

Description:

Op amps.
