TP6311, TP6311QL Datasheet - Tepro Technology

TP6311 1/8 TO 1/16 Duty VFD Controller

The TP6311 is a VFD (Vacuum Fluorescent Display) controller/driver that is driven on a 1/8 to 1/16-duty factor. It consists of 12 segment output lines, 8 grid output lines, 8 segment/grid output drivelines, a display memory, a control circuit, and a key scan circuit. Serial data is input to TP6311 t.

TP6311 Features

* Multiple display modes (12-segment & 16-digit to 20-segment & 8-digit) Key scanning (12×4 matrices) Dimming circuit (eight steps) High-voltage output (VDD

* 35V max) LED ports (5 chs, 20 mA max) General-purpose input port (4 bits) No external resistor necessary for driver outputs (P-ch open-

TP6311QL_TeproTechnology.pdf

This datasheet PDF includes multiple part numbers: TP6311, TP6311QL. Please refer to the document for exact specifications by model.

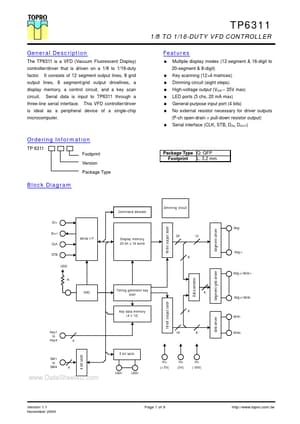

TP6311 Datasheet Preview Page 2 TP6311 Datasheet Preview Page 3

Datasheet Details

Part number:

TP6311, TP6311QL

Manufacturer:

Tepro Technology

File Size:

168.68 KB

Description:

1/8 to 1/16 duty vfd controller.

Note:

This datasheet PDF includes multiple part numbers: TP6311, TP6311QL.
Please refer to the document for exact specifications by model.
