VDD7616A4A Datasheet - A-Data

DOUBLE DATA RATE SDRAM

VDD7616A4A Features

* 2.5V for VDDQ power supply

* SSTL_2 interface

* MRS Cycle with address key programs -CAS Latency (2, 2.5) -Burst Length (2,4 &8) -Burst Type (sequential & Interleave)

* 4 banks operation

* Differential clock input (CK, /CK) operation

* Double data rate int

VDD7616A4A General Description

The VDD7616A4A are four-bank Double Data Rate(DDR) Synchronous DRAMs organized as 2,097,152 words x 16 bits x 4 banks. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Data outputs occur at both rising edges of CK and /C.

VDD7616A4A Datasheet (207.59 KB)

Preview of VDD7616A4A PDF

Datasheet Details

Part number:

VDD7616A4A

Manufacturer:

A-Data

File Size:

207.59 KB

Description:

Double data rate sdram.

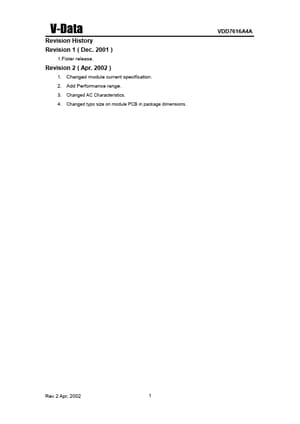

V-Data Revision History Revision 1 ( Dec. 2001 ) 1.Fister release. VDD7616A4A Revision 2 ( Apr. 2002 ) 1. Changed module current specification. 2. A.
