AS5422A

18V High Efficiency Synchronous Step-Down Converter

AS5422A Features

* ‹ ‹ Wide Input Operating Range from 4.5V to 18V High Efficiency: Up to 90%at Light Load Up to 95% at Heavy Load ‹ ‹ ‹ ‹ ‹ ‹ ‹ Capable of Delivering 2A Input OVP at 20V No External Schottky Diode Needed Current Mode control 0.923V Reference for Low Output voltages Logic Control Shutdown Thermal shutd

AS5422A General Description

The AS5422A is a wide input range, high-efficiency, step-down switching regulator, capable of delivering up to 2A of output current. Current mode PWM control allows the use of small external components, such as ceramic input and output caps, as well as small inductors, while still providing low outp.

AS5422A Datasheet (504.93 KB)

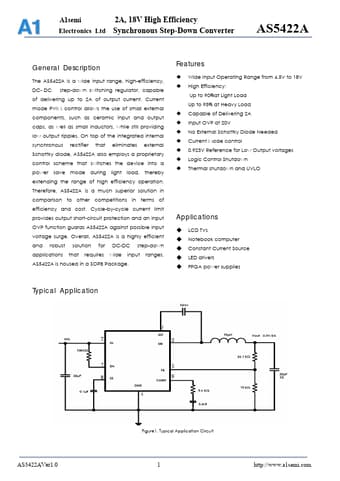

Preview of AS5422A PDF

Datasheet Details

Part number:

AS5422A

Manufacturer:

A1semi

File Size:

504.93 KB

Description:

18v high efficiency synchronous step-down converter.
