AS5410

3D-Hall Encoder absolute linear

AS5410 Features

* up to 14-bit full scale resolution

* SPI and PWM output

* Wide magnetic input range

* 33 linearization points to achieve high precision

* Absolute linear position sensing up to 50 mm stroke

* Suppression of magnetic stray fields

* Low power operation 3 Applications

AS5410 General Description

The chip can measure magnetic fields components in all three dimensions and converts the magnetic field information into absolute, position information. The AS5410 supports absolute linear position measurement applications. Only a simple 2-pole magnet is required as the magnetic field source. Using .

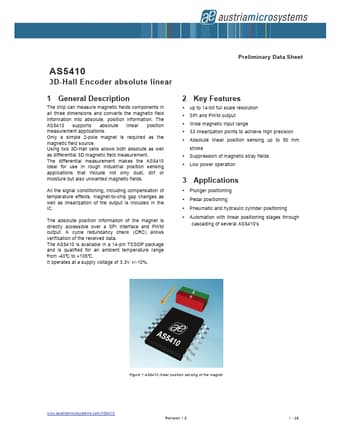

AS5410 Datasheet (1.63 MB)

Preview of AS5410 PDF

Datasheet Details

Part number:

AS5410

Manufacturer:

austriamicrosystems

File Size:

1.63 MB

Description:

3d-hall encoder absolute linear.
