AS5132

360 Step (8.5 bit) Programmable High Speed Magnetic Rotary Encoder

AS5132 Features

* 360º contactless angular position sensing www.DataSheet.co.kr 3 Applications The AS5132 is suitable for contactless rotary position sensing, rotary switches (human machine interface), AC/DC motor position control and Brushless DC motor position control. Figure 1. AS5132 Block Diagram VDD5V

AS5132 General Description

The AS5132 is a contactless magnetic rotary encoder for accurate angular measurement over a full turn of 360 degrees. It is a systemon-chip, combining integrated Hall elements, analog frontend and digital signal processing in a single device. To measure the angle, only a simple two-pole magnet, rota.

AS5132 Datasheet (1.23 MB)

Preview of AS5132 PDF

Datasheet Details

Part number:

AS5132

Manufacturer:

austriamicrosystems

File Size:

1.23 MB

Description:

360 step (8.5 bit) programmable high speed magnetic rotary encoder.
Datasheet AS5132 3 6 0 S t e p ( 8 . 5 b i t ) P r o g r a m m a b l e H ig h S p e e d M a g n e t i c R o t a r y E n c o d e r 1 General Descripti.

📁 Related Datasheet

AS5130 8 Bit Programmable Magnetic Rotary Encoder (austriamicrosystems AG)

AS5130 8-Bit Programmable Magnetic Rotary Encoder (ams)

AS5132 360 Step (8.5 bit) Programmable High Speed Magnetic Rotary Encoder (ams)

AS5134 360 Step Programmable High Speed Magnetic Rotary Encoder (austriamicrosystems AG)

AS5115 Programmable 360-o Magnetic Angle Encoder (austriamicrosystems AG)

AS5116 On-Axis Magnetic Position Sensor (ams)

AS5140H 10-Bit 360 Programmable Magnetic Rotary Encoder (austriamicrosystems AG)

AS5140H 10-Bit 360-o Programmable Magnetic Rotary Encoder (ams)

AS5145 12-Bit Programmable Magnetic Rotary Encoder (austriamicrosystems AG)

AS5145A 12-Bit Programmable Magnetic Rotary Encoder (austriamicrosystems AG)

TAGS

AS5132 360 Step 8.5 bit Programmable High Speed Magnetic Rotary Encoder austriamicrosystems

Image Gallery

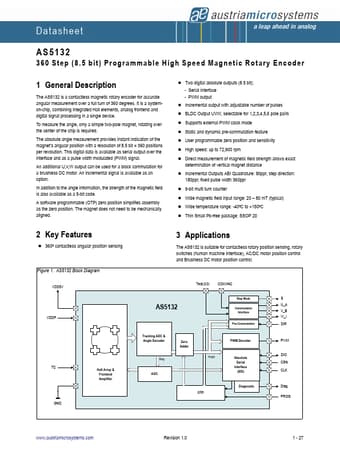

AS5132 Datasheet Preview Page 2 AS5132 Datasheet Preview Page 3
