AS5145B, AS5145 Datasheet - austriamicrosystems AG

AS5145B 12-Bit Programmable Magnetic Rotary Encoder

The AS5145 is a contact less magnetic rotary encoder for accurate angular measurement over a full turn of 360 degrees. It is a system-on-chip, combining integrated Hall elements, analog front end and digital signal processing in a single device. To measure the angle, only a simple two-pole magnet, r.

AS5145B Features

* Contact less high resolution rotational position encoding over a full turn of 360 degrees Two digital 12 bit absolute outputs: - Serial interface - Pulse width modulated (PWM) output 3 Applications The device is ideal for industrial applications like contactless rotary position sensing and robotics

AS5145_austriamicrosystemsAG.pdf

This datasheet PDF includes multiple part numbers: AS5145B, AS5145. Please refer to the document for exact specifications by model.

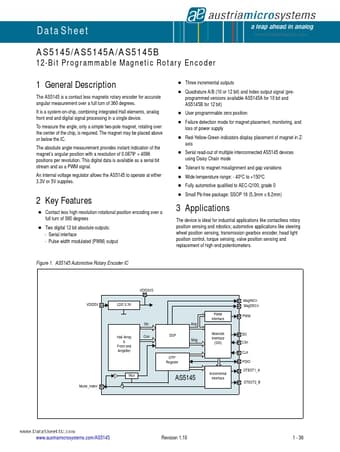

AS5145B Datasheet Preview Page 2 AS5145B Datasheet Preview Page 3

Datasheet Details

Part number:

AS5145B, AS5145

Manufacturer:

austriamicrosystems AG

File Size:

1.19 MB

Description:

12-bit programmable magnetic rotary encoder.

Note:

This datasheet PDF includes multiple part numbers: AS5145B, AS5145.
Please refer to the document for exact specifications by model.
