AS5140H Datasheet, Encoder, austriamicrosystems AG

AS5140H Features

  • Encoder Contactless high resolution rotational position encoding over a full turn of 360º Two digital 10-bit absolute outputs: Serial interface and Pulse width modulated (PWM) output Three incr

PDF File Details

Part number:

AS5140H

Manufacturer:

austriamicrosystems AG

File Size:

1.01MB

Download:

📄 Datasheet

Description:

10-bit 360 programmable magnetic rotary encoder. The AS5140H is a contactless magnetic rotary encoder for accurate angular measurement over a full turn of 360º and over an extended a

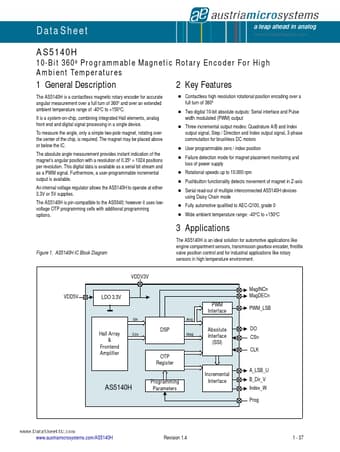

Datasheet Preview: AS5140H 📥 Download PDF (1.01MB)
Page 2 of AS5140H Page 3 of AS5140H

AS5140H Application

  • Applications Figure 1. AS5140H IC Block Diagram The AS5140H is an ideal solution for automotive applications like engine compartment sensors, transm
