AS5147P - 14-Bit On-Axis Magnetic Rotary Position Sensor

Product Overview

ams

AS5147P 14-Bit On-Axis Magnetic Rotary Position Sensor by ams - Datasheet Preview — Datasheet preview – AS5147P

Datasheet Details

Part number	AS5147P
Manufacturer	ams
File Size	636.91 KB
Description	14-Bit On-Axis Magnetic Rotary Position Sensor
Datasheet	AS5147P Datasheet
Additional preview pages of the AS5147P datasheet.

Product details

Description

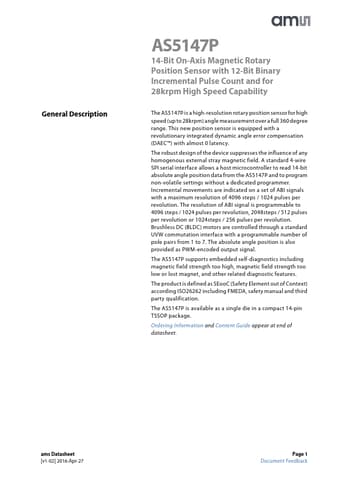

Figure 1: Added Value of Using the AS5147P Benefits High speed application Easy to use saving costs on DSP AS5147P 14-Bit On-Axis Magnetic Rotary Position Sensor with 12-Bit Binary Incremental Pulse Count and for 28krpm High Speed Capability The AS5147P is a high-resolution rotary position sensor for high speed (up to 28krpm) angle measurement over a full 360 degree range.This new position sensor is equipped with a revolutionary integrated dynamic angle error compensation (DAEC™) wit

Features

The product is defined as SEooC (Safety Element out of Context) according ISO26262 including FMEDA, safety manual and third party qualification. The AS5147P is available as a single die in a compact 14-pin TSSOP package. Ordering Information and Content Guide appear at end of datasheet. Key Benefits & Features The benefits and features of this device are listed below: Features Up to 28krpm DAEC™ Dynamic angle error compensation ams Datasheet [v1-01] 2015-May-12 Page 1 Document Feedback AS514.
