AS5430 Datasheet, converter equivalent, A1semi

AS5430 Features

  • Converter ‹ 3A Output Current ‹ Integrated 100mΩ Power MOSFETS ‹ Wide 4.75~23V Input Voltage Range ‹ Programmable Soft-start ‹ Up to 95% Efficiency ‹ Stable with Low ESR Ceramic Output Capacitors

PDF File Details

Part number:

AS5430

Manufacturer:

A1semi

File Size:

490.85kb

Download:

📄 Datasheet

Description:

3a 400khz synchronous rectified step-down converter. The AS5430 is a monolithic synchronous buck regulator. The device integrates 100mΩ MOSFETS that provide 3A continuous load current ov

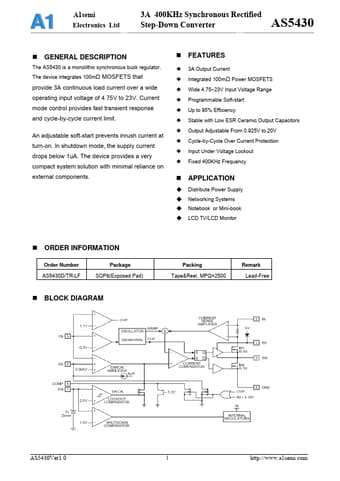

Datasheet Preview: AS5430 📥 Download PDF (490.85kb)
Page 2 of AS5430 Page 3 of AS5430
